Description

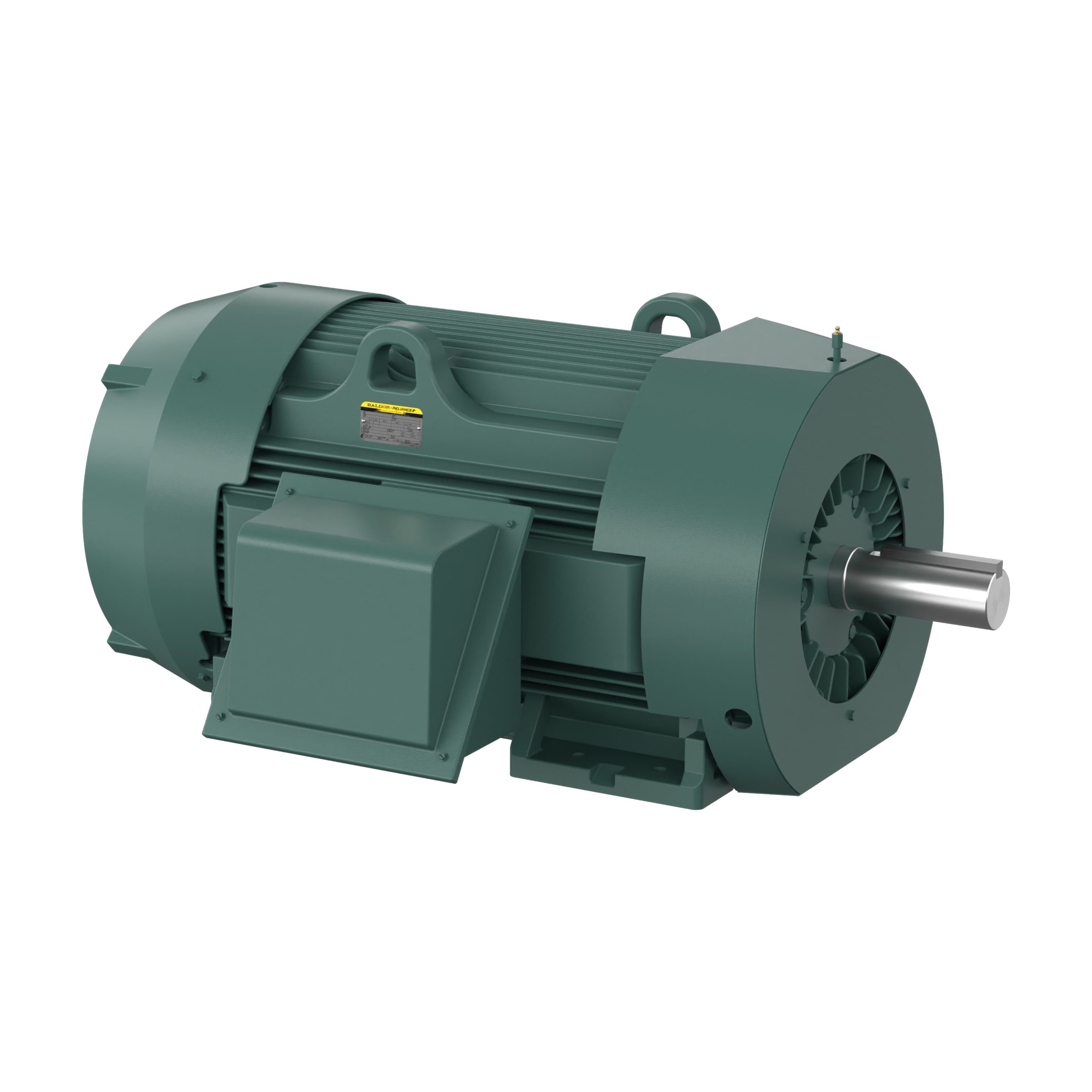

300 HP, 1800 RPM, Three Phase, 460V, 60HZ, TEFC, 449T, F1
Additional information
| Weight | 2817 lbs |
|---|---|
| Brand | Baldor-Reliance® |
| PRODUCT FAMILY | AC Motors |
| PRODUCT LINE | VS Master Inverter duty |
| UPC | 7.82E+11 |
| Specification Number | P44G4017 |
| ENCLOSURE | TEFC |
| FRAME SIZE | 449T |
| AGENCY APPROVALS | CCSA US |
| Frame Material | Iron |
| Conduit Box Material | |
| POLES | 4 |
| INSULATION CLASS | F |
| SHAFT ROTATION | Reversible |
| BASE | Rigid |
| HORSEPOWER | 300 HP |
| SERVICE FACTOR | 1 |
| DUTY CYCLE | Continuous |
| Synchronous RPM | 1800 |
| SPEED RPM | 1790 |
| Base Speed | 1800 |
| Max Speed | 3600 |
| IEC OR NEMA STANDARD | NEMA |
| OVERALL LENGTH | 56.66 in |
| VOLTAGE | 460 |
| Armature Voltage | |
| Field Voltage | |
| PHASE | Three Phase |
| FREQUENCY | 60;90 |
| Multispeed Code | Single Speed |
| Armature Current | |
| Field Current | |
| Armature Inertia | |
| Brushes | |
| POWER FACTOR | 86 |
| RATED EFFICIENCY | 96.20% |
| XP_GROUP | |
| XP Temp Code | |
| End Plate (DE) | STANDARD |
| NEMA DESIGN | A |
| BEARING DE | 90BC03J30X |
| BEARING ODE | 6318C3VL0241 |
| AMBIENT TEMP | 40 °C |
| Mount Type | F1 |
| Shaft Diameter | 3.3750 in |
| Inverter Duty | Inverter Duty |
| Shaft Grounding | No Shaft Grounding |
| IP Rating | |
| List | 64003 |
| Style | |
| Discount Symbol | VS3 |
| Product URL | |
| INFO PACKET | https://www.baldor.com/api/products/ZDVSM44304T-4/infopacket |
