ZDNRPM18054C
P18T0369

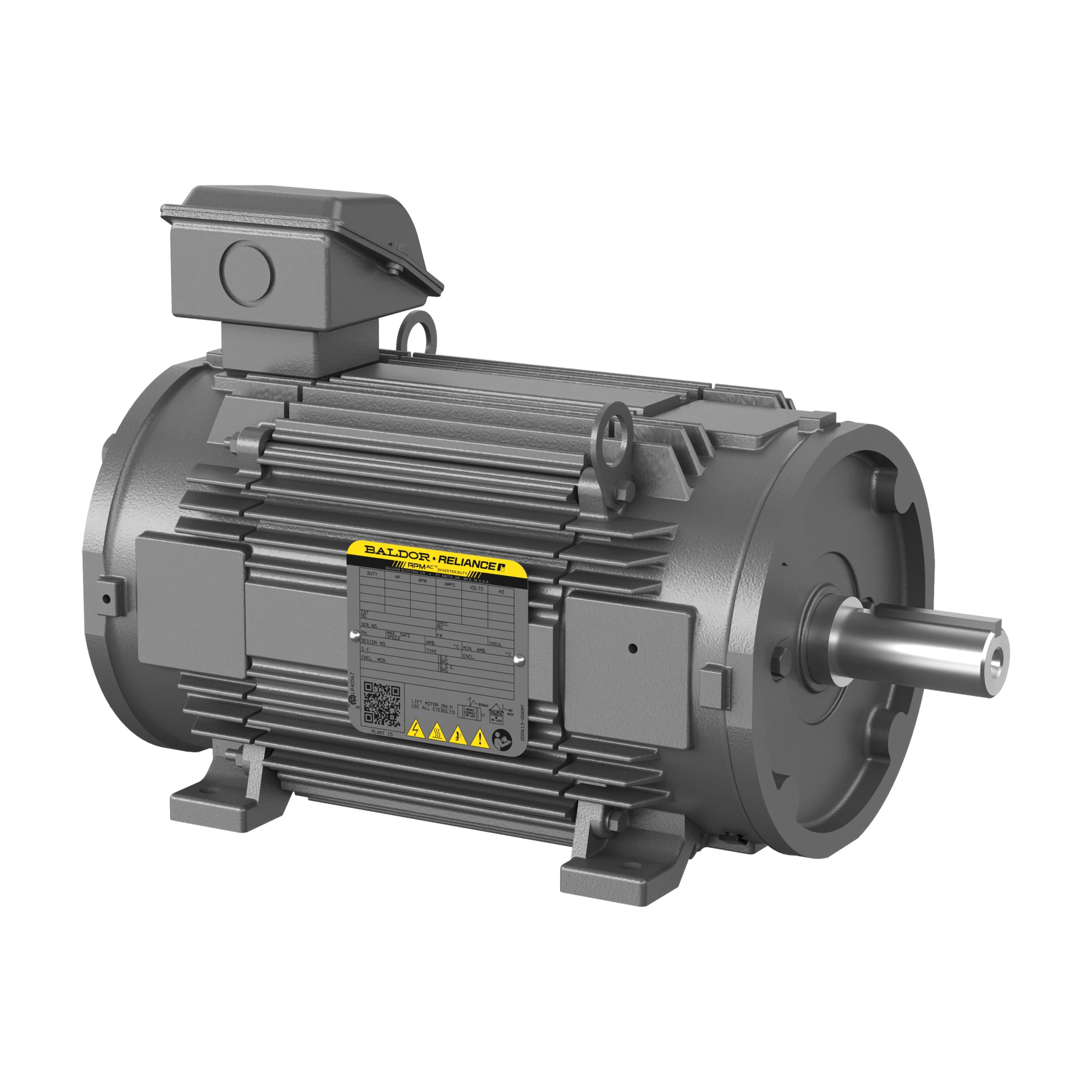

5 HP, 1800 RPM, Three Phase, 230/460V, 60HZ, TENV, FL1838C, F3
Description
5 HP, 1800 RPM, Three Phase, 230/460V, 60HZ, TENV, FL1838C, F3
Additional information
| Weight | 180 lbs |
|---|---|
| Brand | Baldor-Reliance® |
| PRODUCT FAMILY | AC Motors |
| PRODUCT LINE | RPM AC Inverter Duty |
| UPC | 7.82E+11 |
| Specification Number | P18T0369 |
| ENCLOSURE | TENV |
| FRAME SIZE | FL1838C |
| AGENCY APPROVALS | CCSA US |
| Frame Material | Exposed Laminations |
| Conduit Box Material | |
| POLES | |
| INSULATION CLASS | H |
| SHAFT ROTATION | Reversible |
| BASE | Rigid |
| HORSEPOWER | 5 HP |
| SERVICE FACTOR | 1 |
| DUTY CYCLE | Continuous |
| Synchronous RPM | 1800 |
| SPEED RPM | 1770/3540 |
| Base Speed | 1800 |
| Max Speed | |
| IEC OR NEMA STANDARD | NEMA |
| OVERALL LENGTH | 17.87 in |
| VOLTAGE | 230;460 |
| Armature Voltage | |
| Field Voltage | |
| PHASE | Three Phase |
| FREQUENCY | 60 |
| Multispeed Code | |
| Armature Current | |
| Field Current | |
| Armature Inertia | |
| Brushes | |
| POWER FACTOR | |
| RATED EFFICIENCY | |
| XP_GROUP | |
| XP Temp Code | |
| End Plate (DE) | C-FACE |
| NEMA DESIGN | – |
| BEARING DE | 45BC02JPP30A |
| BEARING ODE | 35BC02JPP30A |
| AMBIENT TEMP | |
| Mount Type | F3 |
| Shaft Diameter | |
| Inverter Duty | |
| Shaft Grounding | No Shaft Grounding |
| IP Rating | |
| List | 10006 |
| Style | |
| Discount Symbol | RP4 |
| Product URL | |
| INFO PACKET |
