Description

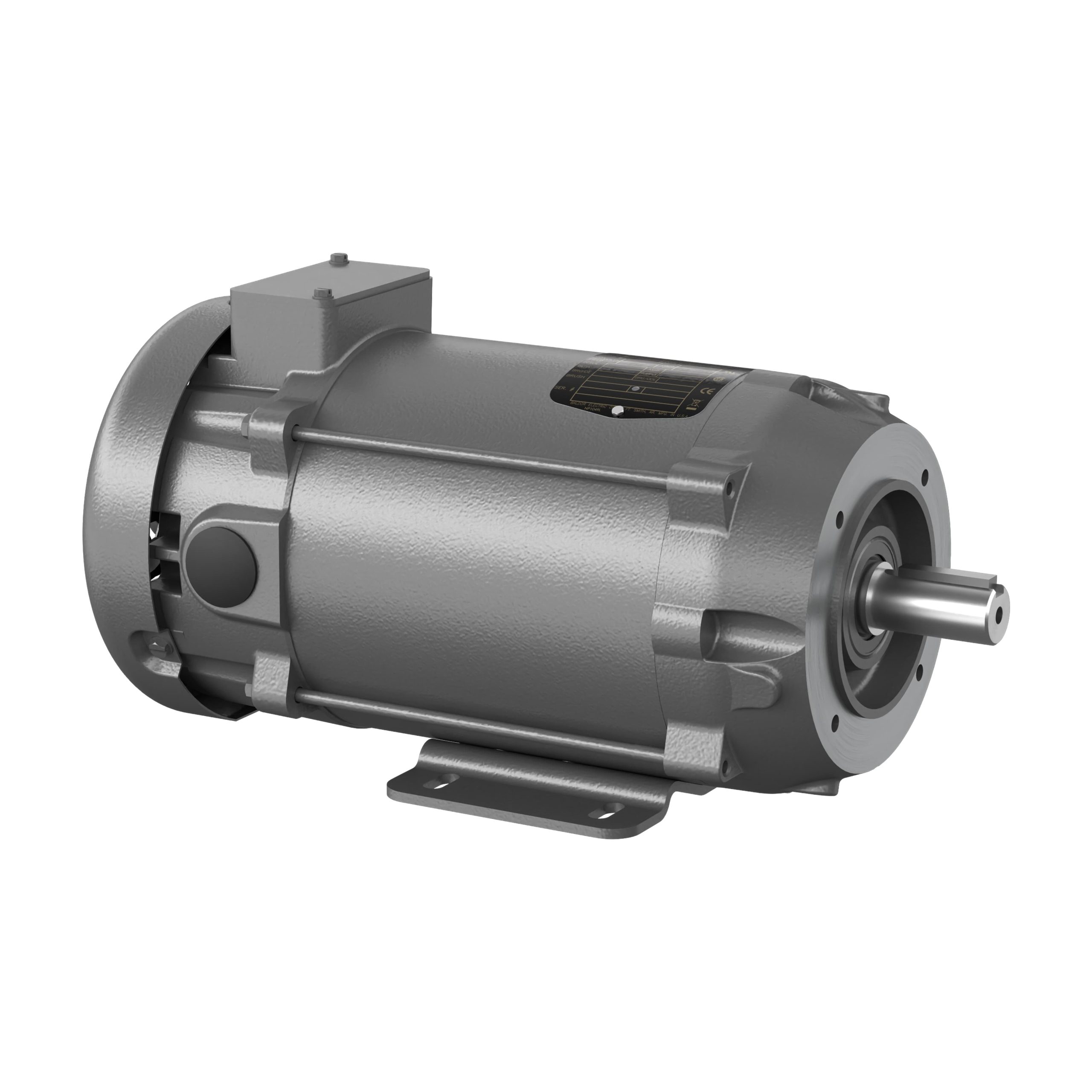

1 1/2 HP, 1750 RPM, 180 V ARM, TEFC, D90C, B34
Additional information
| Weight | 84 lbs |
|---|---|
| Brand | Baldor-Reliance® |
| PRODUCT FAMILY | DC Motors |
| PRODUCT LINE | Metric Flange SCR, permanent magnet |
| UPC | 7.82E+11 |
| Specification Number | 35P454Z164 |
| ENCLOSURE | TEFC |
| FRAME SIZE | D90C |
| AGENCY APPROVALS | CE;CSA;UR;WEEE |
| Frame Material | Steel |
| Conduit Box Material | Steel |
| POLES | |
| INSULATION CLASS | F |
| SHAFT ROTATION | Reversible |
| BASE | Rigid |
| HORSEPOWER | 1 1/2 HP |
| SERVICE FACTOR | 1 |
| DUTY CYCLE | Continuous |
| Synchronous RPM | |
| SPEED RPM | |
| Base Speed | 1750 |
| Max Speed | |
| IEC OR NEMA STANDARD | IEC |
| OVERALL LENGTH | 17.63 in |
| VOLTAGE | |
| Armature Voltage | 180 |
| Field Voltage | |
| PHASE | |
| FREQUENCY | |
| Multispeed Code | |
| Armature Current | 7.7 |
| Field Current | |
| Armature Inertia | 30.342 |
| Brushes | 2/BP5000T15 |
| POWER FACTOR | |
| RATED EFFICIENCY | |
| XP_GROUP | |
| XP Temp Code | |
| End Plate (DE) | |
| NEMA DESIGN | – |
| BEARING DE | 6206 |
| BEARING ODE | 6205 |
| AMBIENT TEMP | 40 °C |
| Mount Type | B34 |
| Shaft Diameter | 0.9450 in |
| Inverter Duty | |
| Shaft Grounding | No Shaft Grounding |
| IP Rating | |
| List | 3807 |
| Style | |
| Discount Symbol | PMS |
| Product URL | |
| INFO PACKET |
