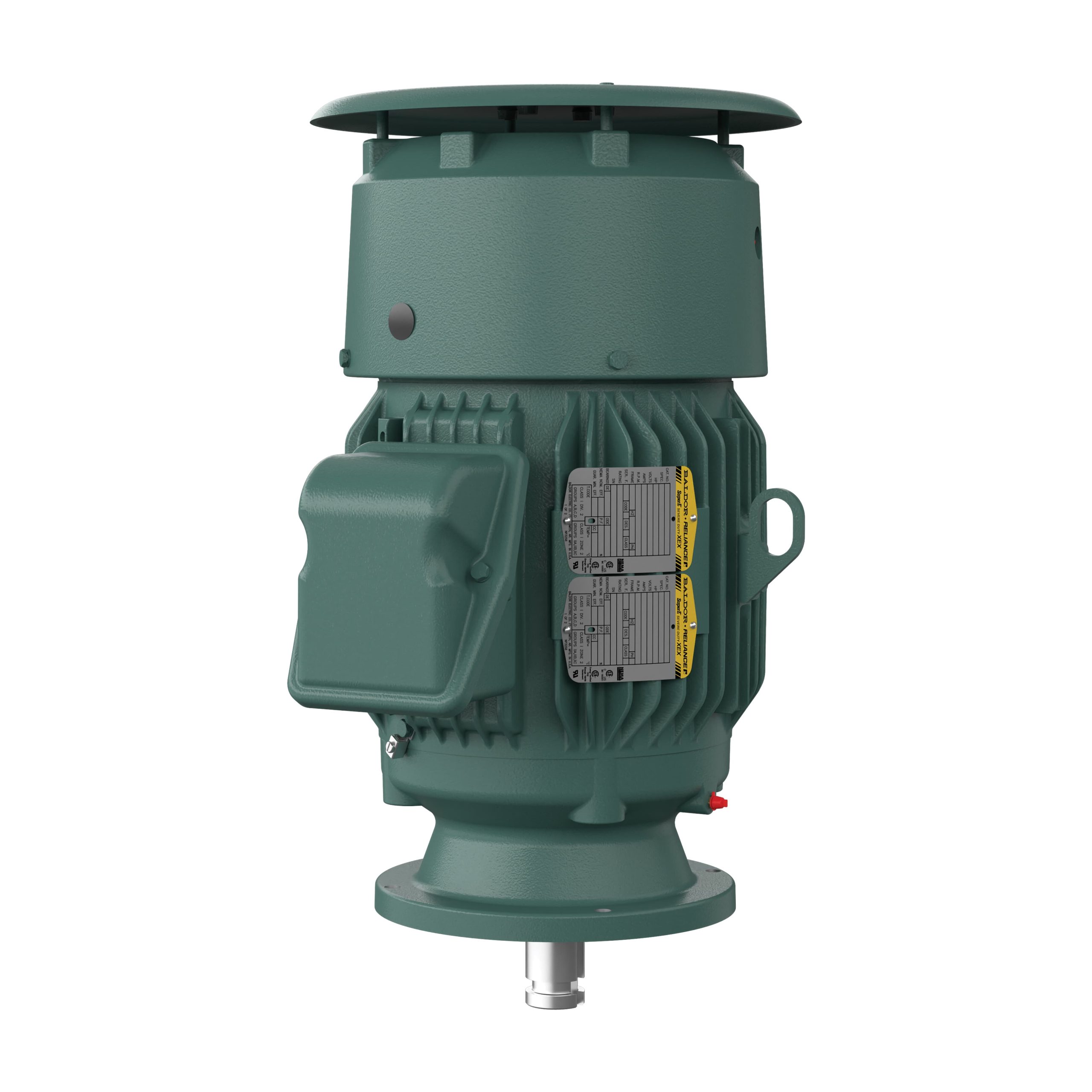

VLECP83769T-4
07D516Y929G1
7 1/2 HP, 3600 RPM, Three Phase, 460V, 60HZ, TEFC, 213LP, W6
Description
7 1/2 HP, 3600 RPM, Three Phase, 460V, 60HZ, TEFC, 213LP, W6
Additional information
| Weight | 171 lbs |
|---|---|
| Brand | Baldor-Reliance® |
| PRODUCT FAMILY | AC Motors |
| PRODUCT LINE | Vertical P-Base, solid shaft pump |
| UPC | 7.82E+11 |
| Specification Number | 07D516Y929G1 |
| ENCLOSURE | TEFC |
| FRAME SIZE | 213LP |
| AGENCY APPROVALS | CCSA US;CSA EEV;NEMA_PREMIUM;UR |
| Frame Material | Iron |
| Conduit Box Material | Cast Iron |
| POLES | 2 |
| INSULATION CLASS | F |
| SHAFT ROTATION | Reversible |
| BASE | No Mounting |
| HORSEPOWER | 7 1/2 HP |
| SERVICE FACTOR | 1.15 |
| DUTY CYCLE | Continuous |
| Synchronous RPM | 3600 |
| SPEED RPM | 3480 |
| Base Speed | |
| Max Speed | 5400 |
| IEC OR NEMA STANDARD | NEMA |
| OVERALL LENGTH | 24.71 in |
| VOLTAGE | 460 |
| Armature Voltage | |
| Field Voltage | |
| PHASE | Three Phase |
| FREQUENCY | 60 |
| Multispeed Code | Single Speed |
| Armature Current | |
| Field Current | |
| Armature Inertia | |
| Brushes | |
| POWER FACTOR | 89 |
| RATED EFFICIENCY | 89.50% |
| XP_GROUP | |
| XP Temp Code | T3C |
| End Plate (DE) | P-BASE |
| NEMA DESIGN | B |
| BEARING DE | 6309 |
| BEARING ODE | 7306 |
| AMBIENT TEMP | 40 °C |
| Mount Type | W6 |
| Shaft Diameter | 1.6250 in |
| Inverter Duty | Inverter Duty |
| Shaft Grounding | No Shaft Grounding |
| IP Rating | IP56 |
| List | 7163 |
| Style | |
| Discount Symbol | PV3 |
| Product URL | |
| INFO PACKET | https://www.baldor.com/api/products/VLECP83769T-4/infopacket |
