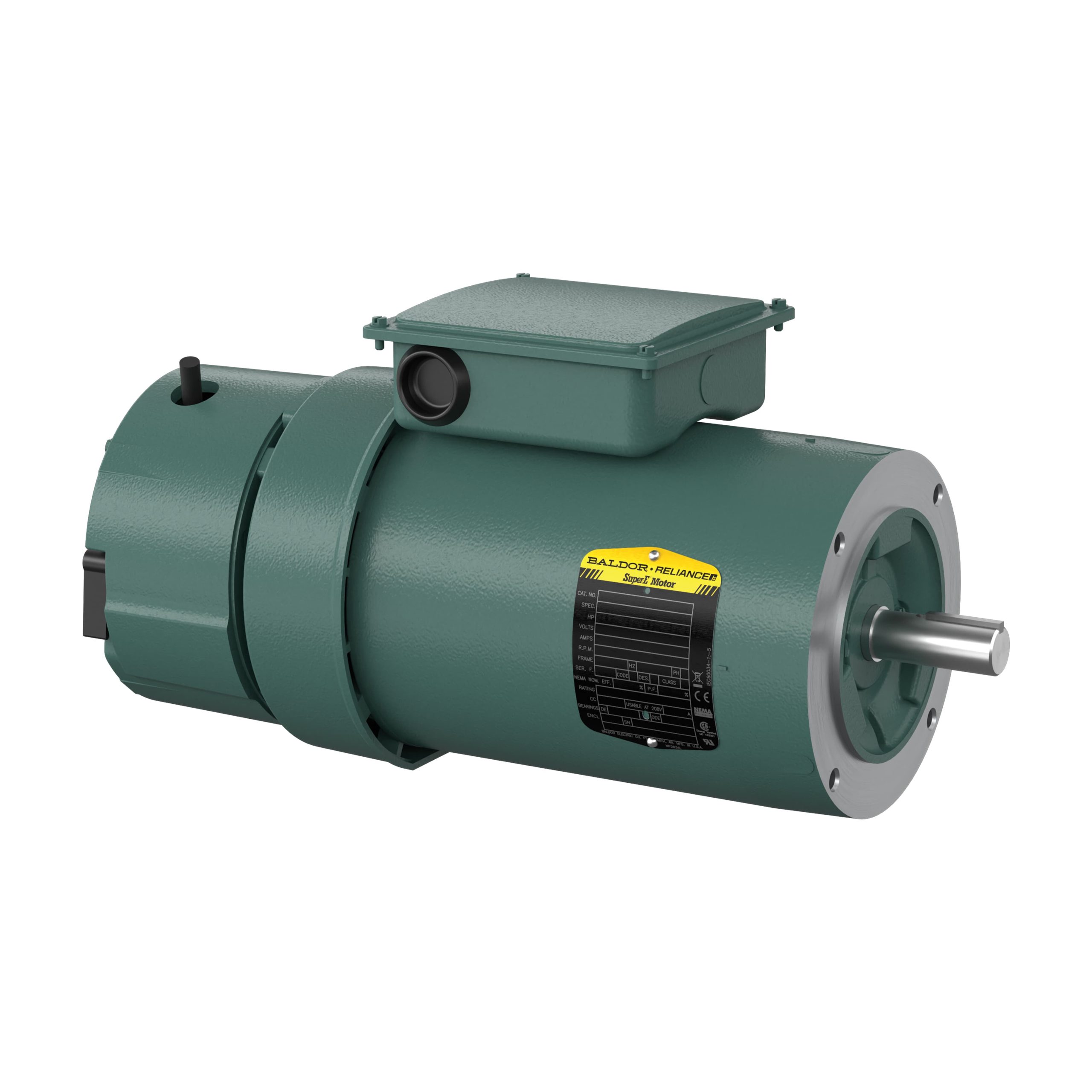

VEBM3546T-5D
35X050G119G1
1 HP, 1800 RPM, Three Phase, 575V, 60HZ, TEFC, 143TC, F3
Description
1 HP, 1800 RPM, Three Phase, 575V, 60HZ, TEFC, 143TC, F3
Additional information
| Weight | 52 lbs |
|---|---|
| Brand | Baldor-Reliance® |
| PRODUCT FAMILY | AC Motors |
| PRODUCT LINE | D-series brake |
| UPC | 7.82E+11 |
| Specification Number | 35X050G119G1 |
| ENCLOSURE | TEFC |
| FRAME SIZE | 143TC |
| AGENCY APPROVALS | CURUSEEV;NEMA_PREMIUM |
| Frame Material | Steel |
| Conduit Box Material | Steel |
| POLES | 4 |
| INSULATION CLASS | F |
| SHAFT ROTATION | Reversible |
| BASE | No Mounting |
| HORSEPOWER | 1 HP |
| SERVICE FACTOR | 1.15 |
| DUTY CYCLE | Continuous |
| Synchronous RPM | 1800 |
| SPEED RPM | 1775 |
| Base Speed | |
| Max Speed | |
| IEC OR NEMA STANDARD | NEMA |
| OVERALL LENGTH | 17.19 in |
| VOLTAGE | 575 |
| Armature Voltage | |
| Field Voltage | |
| PHASE | Three Phase |
| FREQUENCY | 60 |
| Multispeed Code | Single Speed |
| Armature Current | |
| Field Current | |
| Armature Inertia | |
| Brushes | |
| POWER FACTOR | 70 |
| RATED EFFICIENCY | 85.50% |
| XP_GROUP | |
| XP Temp Code | |
| End Plate (DE) | C-FACE |
| NEMA DESIGN | B |
| BEARING DE | 6205 |
| BEARING ODE | 6205 |
| AMBIENT TEMP | 40 °C |
| Mount Type | F3 |
| Shaft Diameter | 0.8750 in |
| Inverter Duty | Inverter Ready |
| Shaft Grounding | No Shaft Grounding |
| IP Rating | NONE |
| List | 2603 |
| Style | |
| Discount Symbol | UH3 |
| Product URL | |
| INFO PACKET |
