Description

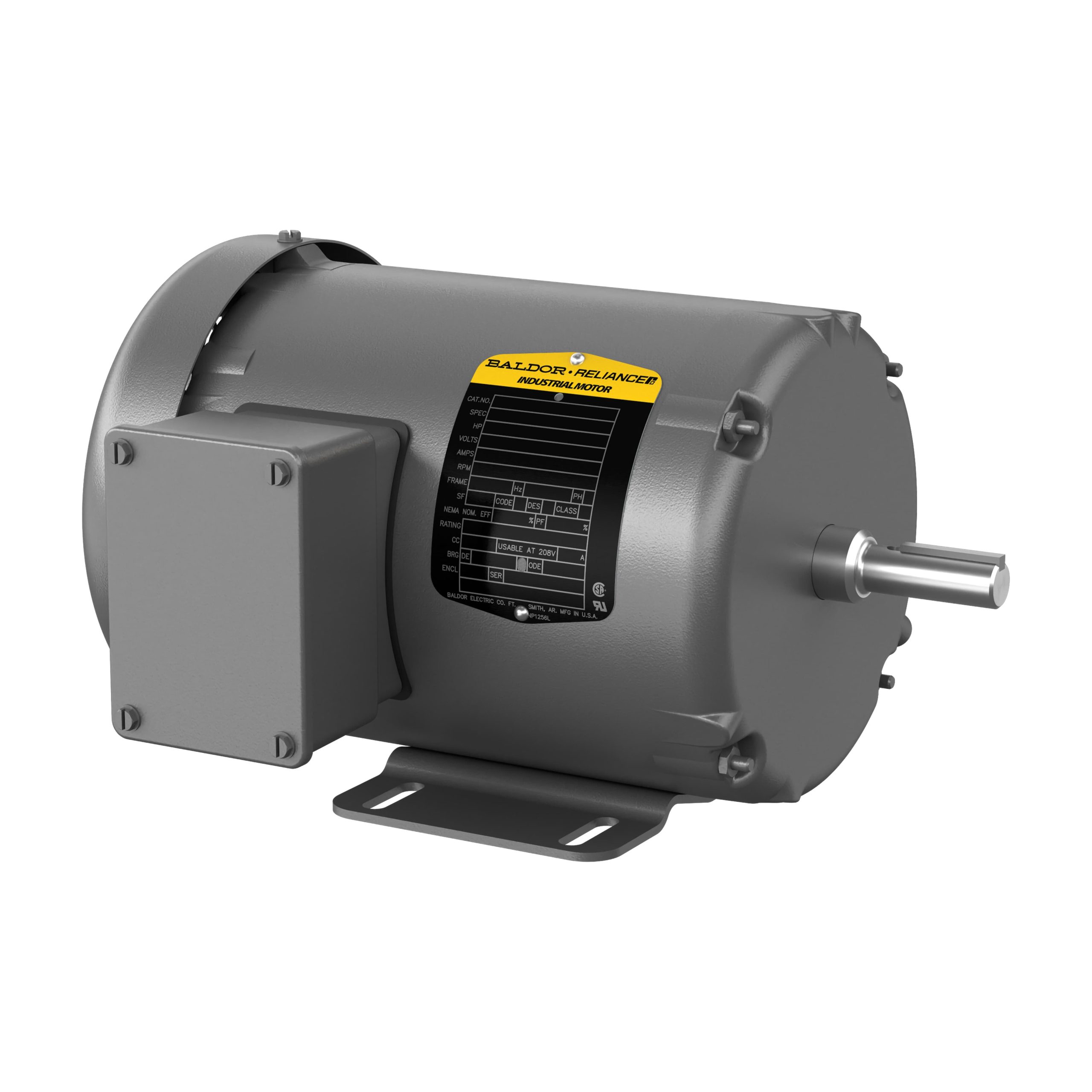

1/3 HP, 900 RPM, Three Phase, 208-230/460V, 60HZ, TEFC, 56, F1
Additional information
| Weight | 29 lbs |
|---|---|
| Brand | Baldor-Reliance® |
| PRODUCT FAMILY | AC Motors |
| PRODUCT LINE | General Purpose, three phase, enclosed |
| UPC | 7.82E+11 |
| Specification Number | 35A011M499G1 |
| ENCLOSURE | TEFC |
| FRAME SIZE | 56 |
| AGENCY APPROVALS | CSA;UR |
| Frame Material | Steel |
| Conduit Box Material | Steel |
| POLES | 8 |
| INSULATION CLASS | B |
| SHAFT ROTATION | Reversible |
| BASE | Rigid |
| HORSEPOWER | 1/3 HP |
| SERVICE FACTOR | 1.35 |
| DUTY CYCLE | Continuous |
| Synchronous RPM | 900 |
| SPEED RPM | 855 |
| Base Speed | |
| Max Speed | |
| IEC OR NEMA STANDARD | NEMA |
| OVERALL LENGTH | 12.23 in |
| VOLTAGE | 230;460 |
| Armature Voltage | |
| Field Voltage | |
| PHASE | Three Phase |
| FREQUENCY | 60 |
| Multispeed Code | Single Speed |
| Armature Current | |
| Field Current | |
| Armature Inertia | |
| Brushes | |
| POWER FACTOR | 51 |
| RATED EFFICIENCY | 59.50% |
| XP_GROUP | |
| XP Temp Code | |
| End Plate (DE) | STANDARD |
| NEMA DESIGN | B |
| BEARING DE | 6205 |
| BEARING ODE | 6203 |
| AMBIENT TEMP | 40 °C |
| Mount Type | F1 |
| Shaft Diameter | 0.6250 in |
| Inverter Duty | Not Inverter |
| Shaft Grounding | No Shaft Grounding |
| IP Rating | NONE |
| List | 1265 |
| Style | |
| Discount Symbol | GE3 |
| Product URL | |
| INFO PACKET |
