Description

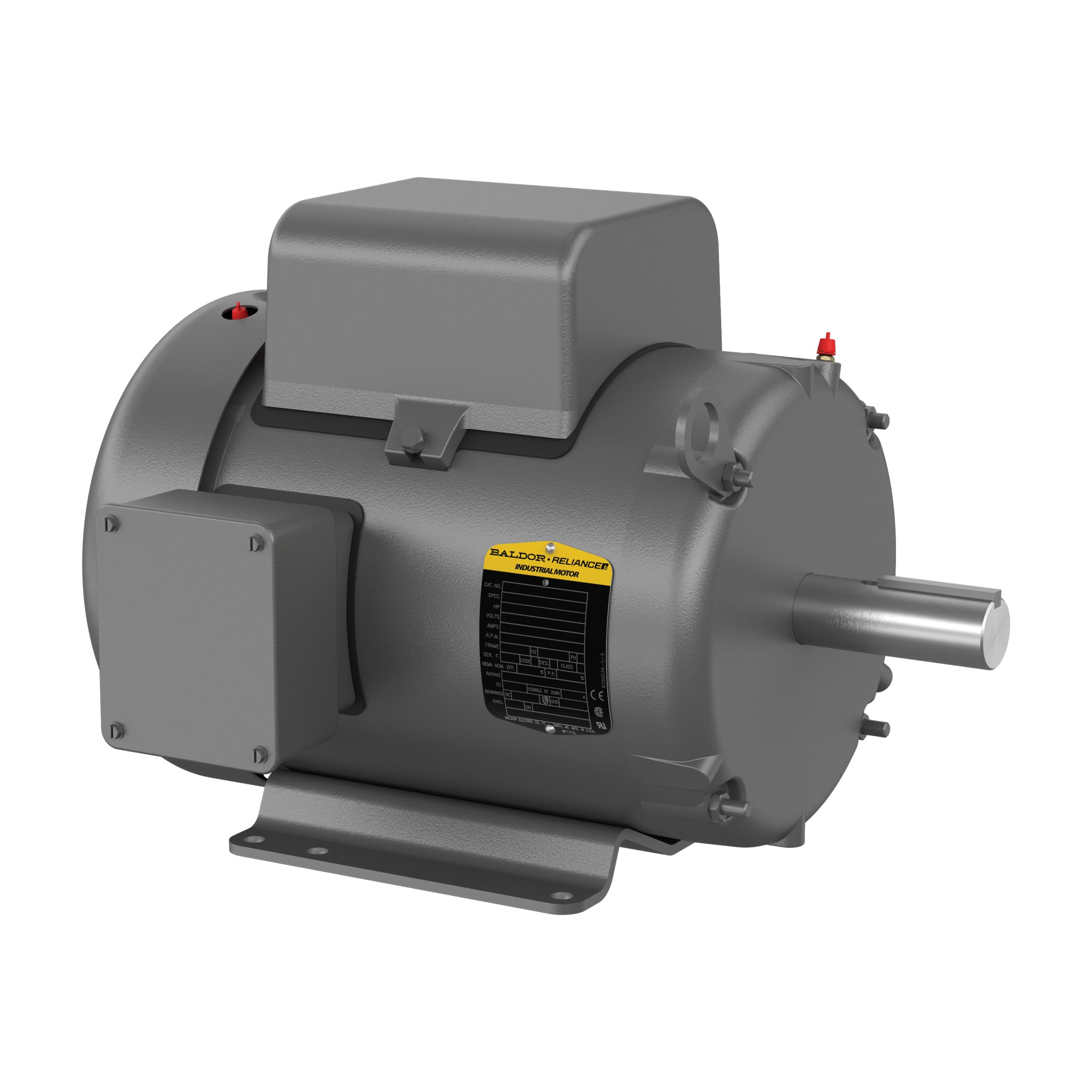

5 HP, 1500 RPM, Single Phase, 220V, 50HZ, TEFC, 213T, F1
Additional information
| Weight | 119 lbs |
|---|---|
| Brand | Baldor-Reliance® |
| PRODUCT FAMILY | AC Motors |
| PRODUCT LINE | General Purpose, single phase, enclosed |
| UPC | 7.82E+11 |
| Specification Number | 37K247T916 |
| ENCLOSURE | TEFC |
| FRAME SIZE | 213T |
| AGENCY APPROVALS | CE;CSA;UR;WEEE |
| Frame Material | Steel |
| Conduit Box Material | Steel |
| POLES | 4 |
| INSULATION CLASS | F |
| SHAFT ROTATION | Reversible |
| BASE | Rigid |
| HORSEPOWER | 5 HP |
| SERVICE FACTOR | 1 |
| DUTY CYCLE | Continuous |
| Synchronous RPM | 1500 |
| SPEED RPM | 1450 |
| Base Speed | |
| Max Speed | |
| IEC OR NEMA STANDARD | NEMA |
| OVERALL LENGTH | 17.89 in |
| VOLTAGE | 230 |
| Armature Voltage | |
| Field Voltage | |
| PHASE | Single Phase |
| FREQUENCY | 50 |
| Multispeed Code | Single Speed |
| Armature Current | |
| Field Current | |
| Armature Inertia | |
| Brushes | |
| POWER FACTOR | 92 |
| RATED EFFICIENCY | 84% |
| XP_GROUP | |
| XP Temp Code | |
| End Plate (DE) | STANDARD |
| NEMA DESIGN | L |
| BEARING DE | 6307 |
| BEARING ODE | 6206 |
| AMBIENT TEMP | 40 °C |
| Mount Type | F1 |
| Shaft Diameter | 1.3750 in |
| Inverter Duty | Not Inverter |
| Shaft Grounding | No Shaft Grounding |
| IP Rating | |
| List | 2589 |
| Style | |
| Discount Symbol | 5.00E+01 |
| Product URL | |
| INFO PACKET |
