Description

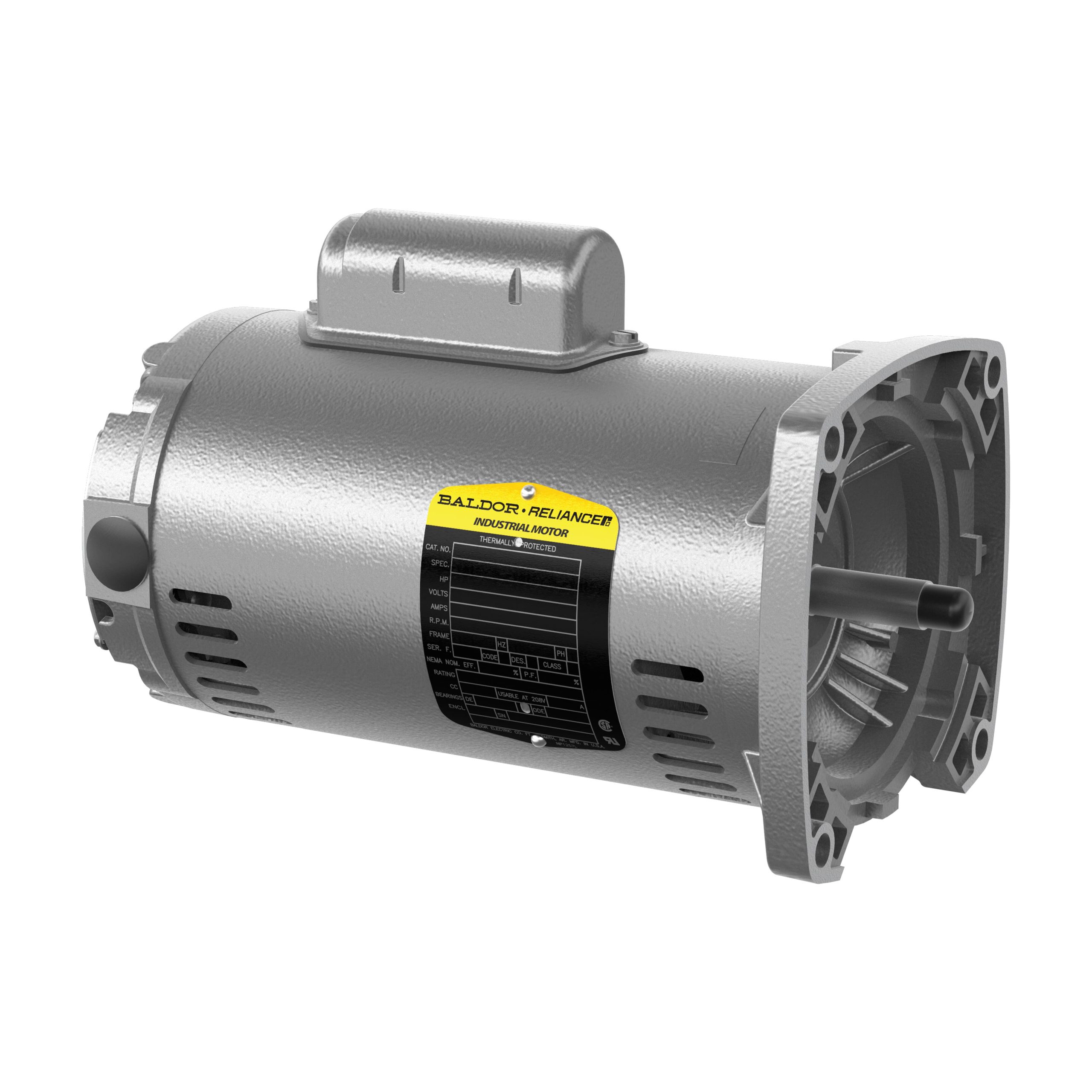

3/4 HP, 3600 RPM, Single Phase, 115/230V, 60HZ, OPEN, 56Y, F1
Additional information
| Weight | 26 lbs |
|---|---|
| Brand | Baldor-Reliance® |
| PRODUCT FAMILY | AC Motors |
| PRODUCT LINE | Square flange pump, single phase |
| UPC | 7.82E+11 |
| Specification Number | 34M228R050G1 |
| ENCLOSURE | OPEN |
| FRAME SIZE | 56Y |
| AGENCY APPROVALS | CSA;UR |
| Frame Material | Steel |
| Conduit Box Material | |
| POLES | 2 |
| INSULATION CLASS | B |
| SHAFT ROTATION | Fixed Opposite Standard |
| BASE | No Mounting |
| HORSEPOWER | 3/4 HP |
| SERVICE FACTOR | 1.5 |
| DUTY CYCLE | Continuous |
| Synchronous RPM | 3600 |
| SPEED RPM | 3450 |
| Base Speed | |
| Max Speed | |
| IEC OR NEMA STANDARD | NEMA |
| OVERALL LENGTH | 11.97 in |
| VOLTAGE | 115;230 |
| Armature Voltage | |
| Field Voltage | |
| PHASE | Single Phase |
| FREQUENCY | 60 |
| Multispeed Code | Single Speed |
| Armature Current | |
| Field Current | |
| Armature Inertia | |
| Brushes | |
| POWER FACTOR | 74 |
| RATED EFFICIENCY | 62% |
| XP_GROUP | |
| XP Temp Code | |
| End Plate (DE) | OTHER |
| NEMA DESIGN | – |
| BEARING DE | 6203 |
| BEARING ODE | 6203 |
| AMBIENT TEMP | 40 °C |
| Mount Type | F1 |
| Shaft Diameter | 0.6250 in |
| Inverter Duty | Not Inverter |
| Shaft Grounding | No Shaft Grounding |
| IP Rating | |
| List | 657 |
| Style | |
| Discount Symbol | PJ1 |
| Product URL | |
| INFO PACKET |
