Description

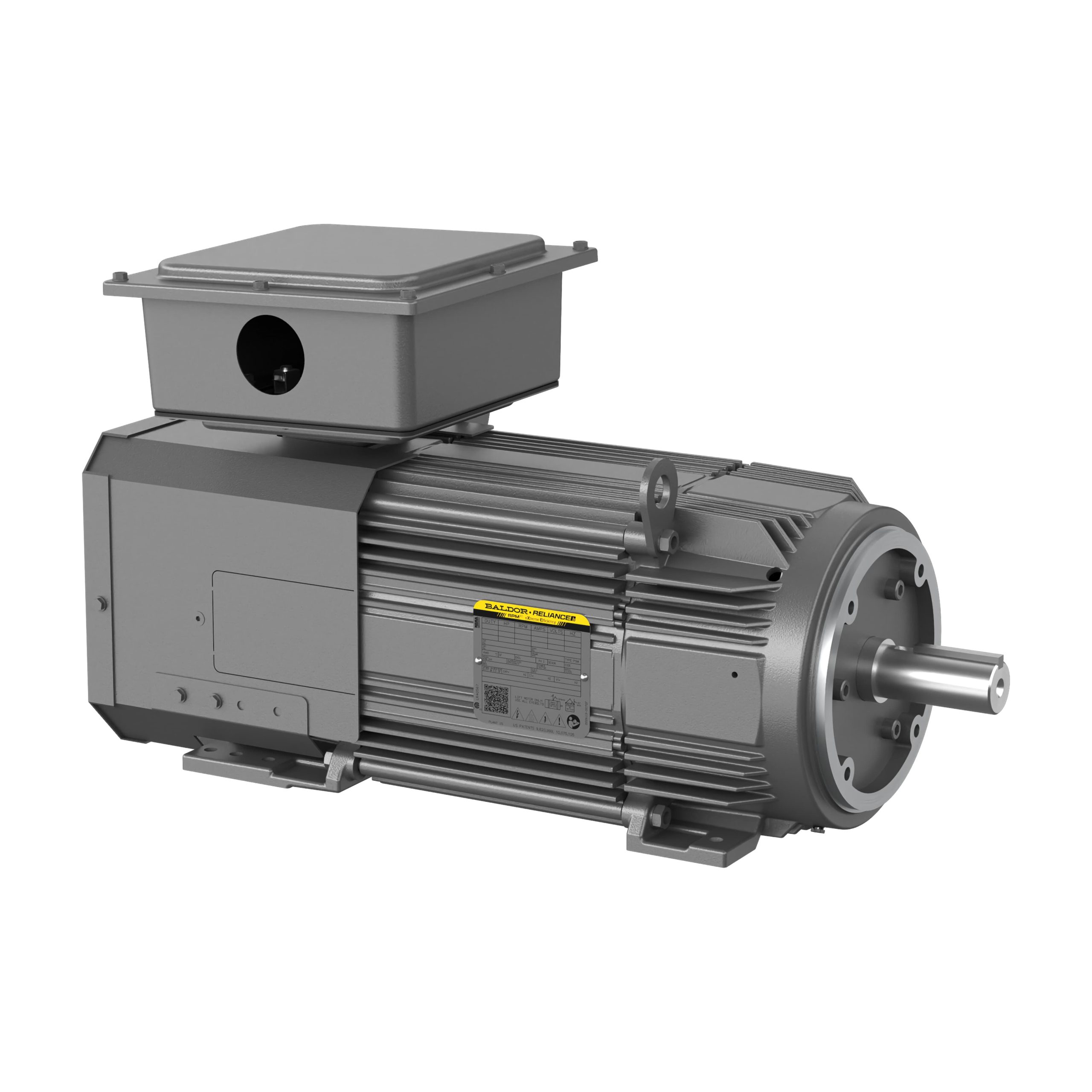

25 HP, 1800 RPM, Three Phase, 460V, 60HZ, TEFC, FL2158Z, F3
Additional information
| Weight | 310 lbs |
|---|---|
| Brand | Baldor-Reliance® |
| PRODUCT FAMILY | AC Motors |
| PRODUCT LINE | RPM AC Inverter Duty |
| UPC | 7.82E+11 |
| Specification Number | F21-A000-0451 |
| ENCLOSURE | TEFC |
| FRAME SIZE | FL2158Z |
| AGENCY APPROVALS | CCSA US;NEMA_PREMIUM |
| Frame Material | Exposed Laminations |
| Conduit Box Material | |
| POLES | |
| INSULATION CLASS | H |
| SHAFT ROTATION | Reversible |
| BASE | Rigid |
| HORSEPOWER | 25 HP |
| SERVICE FACTOR | 1.15 |
| DUTY CYCLE | Continuous |
| Synchronous RPM | 1800 |
| SPEED RPM | 1800 |
| Base Speed | 1800 |
| Max Speed | |
| IEC OR NEMA STANDARD | NEMA |
| OVERALL LENGTH | 25.49 in |
| VOLTAGE | 460 |
| Armature Voltage | |
| Field Voltage | |
| PHASE | Three Phase |
| FREQUENCY | 60 |
| Multispeed Code | |
| Armature Current | |
| Field Current | |
| Armature Inertia | |
| Brushes | |
| POWER FACTOR | |
| RATED EFFICIENCY | |
| XP_GROUP | |
| XP Temp Code | |
| End Plate (DE) | STANDARD |
| NEMA DESIGN | – |
| BEARING DE | 50BC03JPP30A |
| BEARING ODE | 45BC02JPP30A |
| AMBIENT TEMP | |
| Mount Type | F3 |
| Shaft Diameter | |
| Inverter Duty | |
| Shaft Grounding | Shaft Grounding |
| IP Rating | IP54 |
| List | 13072 |
| Style | |
| Discount Symbol | RP3 |
| Product URL | |
| INFO PACKET |
