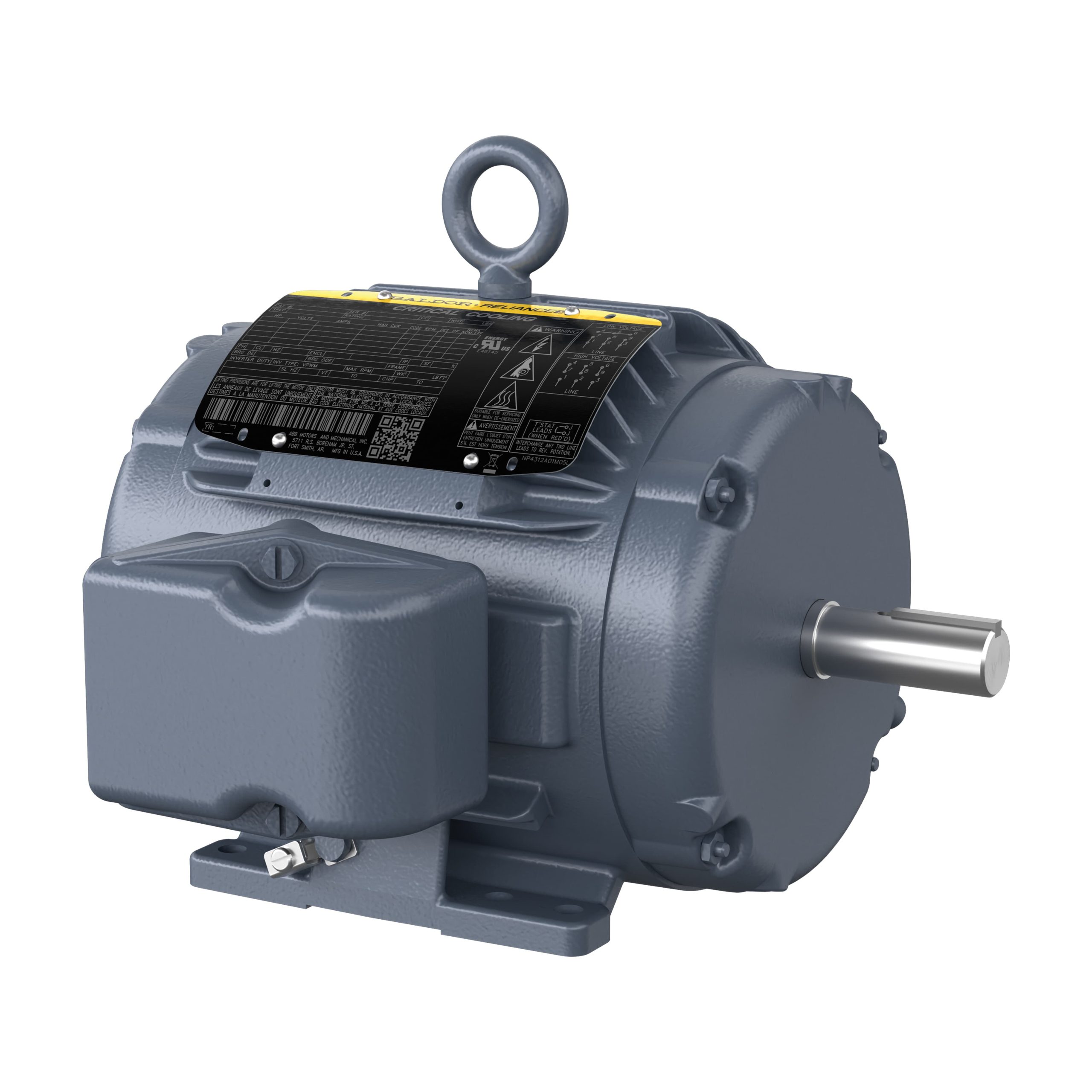

HBAO3586T
05H189W115G2
2 HP, 3600 RPM, Three Phase, 230/460V, 60HZ, TEAO, 145T, F1
Description
2 HP, 3600 RPM, Three Phase, 230/460V, 60HZ, TEAO, 145T, F1
Additional information
| Weight | 64 lbs |
|---|---|
| Brand | Baldor-Reliance® |
| PRODUCT FAMILY | AC Motors |
| PRODUCT LINE | Critical Cooling Motors |
| UPC | 7.82E+11 |
| Specification Number | 05H189W115G2 |
| ENCLOSURE | TEAO |
| FRAME SIZE | 145T |
| AGENCY APPROVALS | CSA;CURUSEEV;NEMA_PREMIUM;WEEE |
| Frame Material | Iron |
| Conduit Box Material | Cast Iron |
| POLES | 2 |
| INSULATION CLASS | H |
| SHAFT ROTATION | Reversible |
| BASE | Rigid |
| HORSEPOWER | 2 HP |
| SERVICE FACTOR | 1.15 |
| DUTY CYCLE | Continuous |
| Synchronous RPM | 3600 |
| SPEED RPM | 3450 |
| Base Speed | |
| Max Speed | 5400 |
| IEC OR NEMA STANDARD | NEMA |
| OVERALL LENGTH | 11.44 in |
| VOLTAGE | 230;460 |
| Armature Voltage | |
| Field Voltage | |
| PHASE | Three Phase |
| FREQUENCY | 60 |
| Multispeed Code | Single Speed |
| Armature Current | |
| Field Current | |
| Armature Inertia | |
| Brushes | |
| POWER FACTOR | 85 |
| RATED EFFICIENCY | 86.50% |
| XP_GROUP | |
| XP Temp Code | |
| End Plate (DE) | STANDARD |
| NEMA DESIGN | B |
| BEARING DE | 6205 |
| BEARING ODE | 6203 |
| AMBIENT TEMP | 40 °C |
| Mount Type | F1 |
| Shaft Diameter | 0.8750 in |
| Inverter Duty | Inverter Ready |
| Shaft Grounding | No Shaft Grounding |
| IP Rating | |
| List | 1645 |
| Style | |
| Discount Symbol | HB3 |
| Product URL | |
| INFO PACKET |
