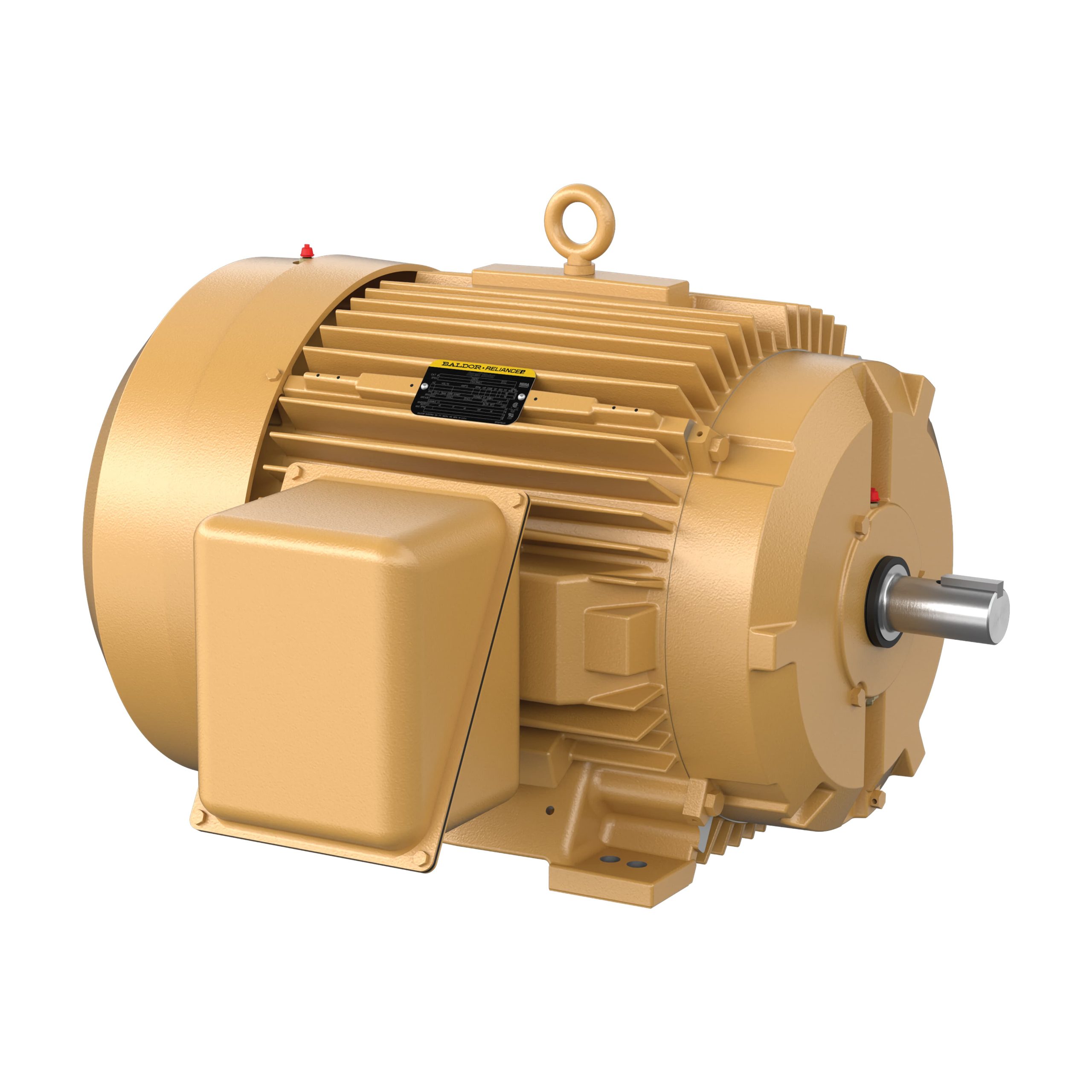

EM4313T-G
A36-0001-1545
75 HP, 3600 RPM, Three Phase, 230/460V, 60HZ, TEFC, 365TS, F1
Description
75 HP, 3600 RPM, Three Phase, 230/460V, 60HZ, TEFC, 365TS, F1
Additional information
| Weight | 966 lbs |
|---|---|
| Brand | Baldor-Reliance® |
| PRODUCT FAMILY | AC Motors |
| PRODUCT LINE | HVAC Motors, Inverter Duty, AEGIS Shaft Grounding Ring |
| UPC | 7.82E+11 |
| Specification Number | A36-0001-1545 |
| ENCLOSURE | TEFC |
| FRAME SIZE | 365TS |
| AGENCY APPROVALS | CCSAUSEEV;NEMA_PREMIUM;UR |
| Frame Material | Iron |
| Conduit Box Material | |
| POLES | 2 |
| INSULATION CLASS | H |
| SHAFT ROTATION | Reversible |
| BASE | Rigid |
| HORSEPOWER | 75 HP |
| SERVICE FACTOR | 1.15 |
| DUTY CYCLE | Continuous |
| Synchronous RPM | 3600 |
| SPEED RPM | 3555//2955 |
| Base Speed | |
| Max Speed | 4500 |
| IEC OR NEMA STANDARD | NEMA |
| OVERALL LENGTH | 31.36 in |
| VOLTAGE | 230;460 |
| Armature Voltage | |
| Field Voltage | |
| PHASE | Three Phase |
| FREQUENCY | 60 |
| Multispeed Code | Single Speed |
| Armature Current | |
| Field Current | |
| Armature Inertia | |
| Brushes | |
| POWER FACTOR | 92 |
| RATED EFFICIENCY | 93.60% |
| XP_GROUP | |
| XP Temp Code | |
| End Plate (DE) | STANDARD |
| NEMA DESIGN | B |
| BEARING DE | 6313 |
| BEARING ODE | 6313 |
| AMBIENT TEMP | 40 °C |
| Mount Type | F1 |
| Shaft Diameter | 1.8750 in |
| Inverter Duty | Inverter Duty |
| Shaft Grounding | Shaft Grounding |
| IP Rating | |
| List | 18759 |
| Style | |
| Discount Symbol | HV3 |
| Product URL | |
| INFO PACKET |
