Description

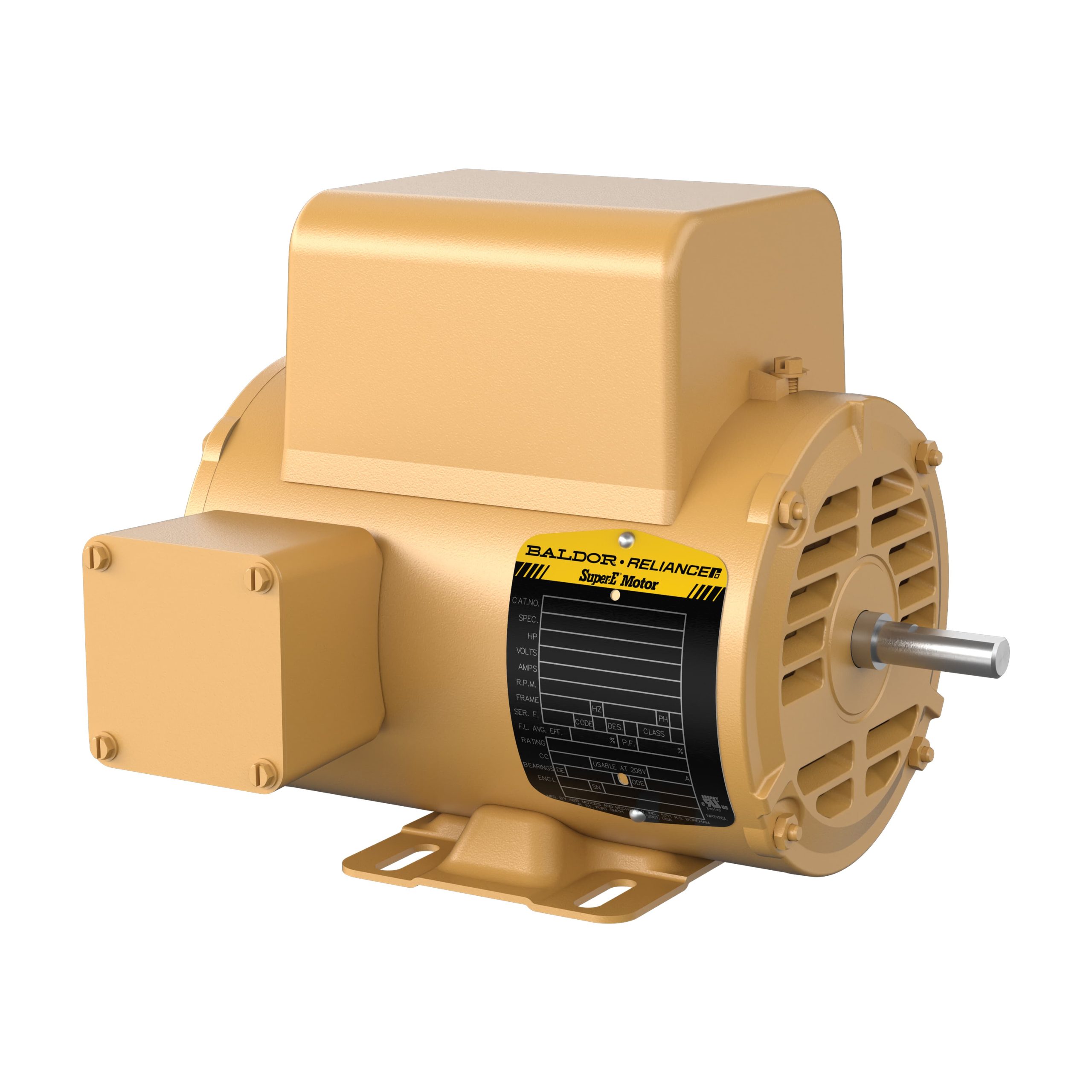

1/3 HP, 1800 RPM, Single Phase, 115/230V, 60HZ, OPEN, 48, F1
Additional information
| Weight | 27 lbs |
|---|---|
| Brand | Baldor-Reliance® |
| PRODUCT FAMILY | AC Motors |
| PRODUCT LINE | General Purpose, single phase, open |
| UPC | 7.82E+11 |
| Specification Number | 34F351R216G1 |
| ENCLOSURE | OPEN |
| FRAME SIZE | 48 |
| AGENCY APPROVALS | CURUSEEV |
| Frame Material | Steel |
| Conduit Box Material | |
| POLES | 4 |
| INSULATION CLASS | F |
| SHAFT ROTATION | Reversible |
| BASE | Rigid |
| HORSEPOWER | 1/3 HP |
| SERVICE FACTOR | 1.35 |
| DUTY CYCLE | Continuous |
| Synchronous RPM | 1800 |
| SPEED RPM | 1740 |
| Base Speed | |
| Max Speed | |
| IEC OR NEMA STANDARD | NEMA |
| OVERALL LENGTH | 9.76 in |
| VOLTAGE | 115;230 |
| Armature Voltage | |
| Field Voltage | |
| PHASE | Single Phase |
| FREQUENCY | 60 |
| Multispeed Code | Single Speed |
| Armature Current | |
| Field Current | |
| Armature Inertia | |
| Brushes | |
| POWER FACTOR | 85 |
| RATED EFFICIENCY | 72.40% |
| XP_GROUP | |
| XP Temp Code | |
| End Plate (DE) | STANDARD |
| NEMA DESIGN | N |
| BEARING DE | 6203 |
| BEARING ODE | 6203 |
| AMBIENT TEMP | 40 °C |
| Mount Type | F1 |
| Shaft Diameter | 0.5000 in |
| Inverter Duty | Not Inverter |
| Shaft Grounding | No Shaft Grounding |
| IP Rating | |
| List | 774 |
| Style | |
| Discount Symbol | GO1 |
| Product URL | |
| INFO PACKET |
