EHM4111T
10J484X979G1

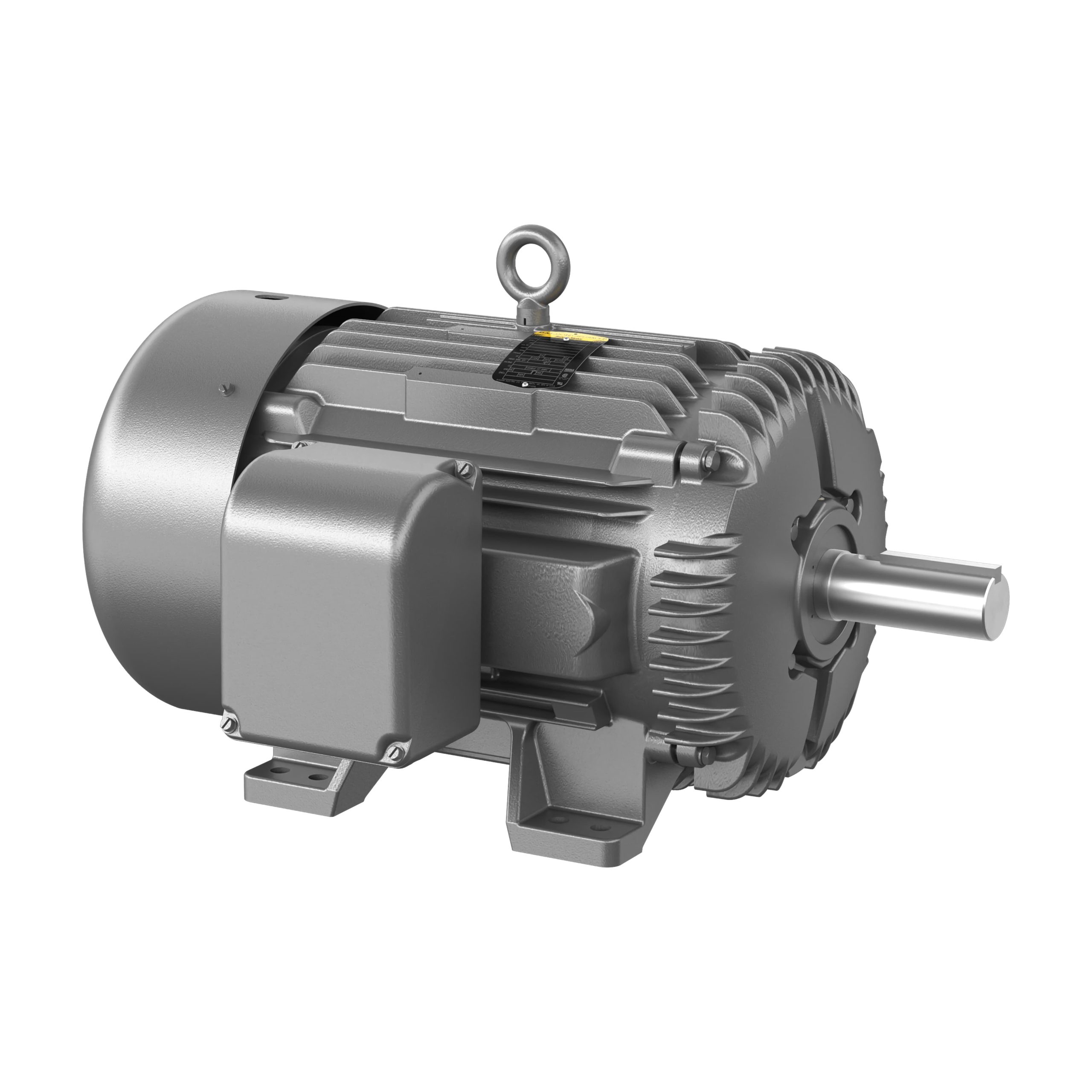

25 HP, 1200 RPM, Three Phase, 230/460V, 60HZ, TEFC, 324T, F1
Description
25 HP, 1200 RPM, Three Phase, 230/460V, 60HZ, TEFC, 324T, F1
Additional information
| Weight | 491.999 lbs |
|---|---|
| Brand | Baldor-Reliance® |
| PRODUCT FAMILY | AC Motors |
| PRODUCT LINE | HVAC, General purpose |
| UPC | 7.82E+11 |
| Specification Number | 10J484X979G1 |
| ENCLOSURE | TEFC |
| FRAME SIZE | 324T |
| AGENCY APPROVALS | CSA;CSA EEV;UR |
| Frame Material | Iron |
| Conduit Box Material | Cast Iron |
| POLES | 6 |
| INSULATION CLASS | F |
| SHAFT ROTATION | Reversible |
| BASE | Rigid |
| HORSEPOWER | 25 HP |
| SERVICE FACTOR | 1.15 |
| DUTY CYCLE | Continuous |
| Synchronous RPM | 1200 |
| SPEED RPM | 1180 |
| Base Speed | |
| Max Speed | |
| IEC OR NEMA STANDARD | NEMA |
| OVERALL LENGTH | 30.39 in |
| VOLTAGE | 575 |
| Armature Voltage | |
| Field Voltage | |
| PHASE | Three Phase |
| FREQUENCY | 60 |
| Multispeed Code | Single Speed |
| Armature Current | |
| Field Current | |
| Armature Inertia | |
| Brushes | |
| POWER FACTOR | 79 |
| RATED EFFICIENCY | 93% |
| XP_GROUP | |
| XP Temp Code | |
| End Plate (DE) | STANDARD |
| NEMA DESIGN | A |
| BEARING DE | 6312 |
| BEARING ODE | 6309 |
| AMBIENT TEMP | 40 °C |
| Mount Type | F1 |
| Shaft Diameter | 2.1250 in |
| Inverter Duty | Inverter Ready |
| Shaft Grounding | Mounting Provisions Only |
| IP Rating | |
| List | 9681 |
| Style | |
| Discount Symbol | HV3 |
| Product URL | |
| INFO PACKET |
