Description

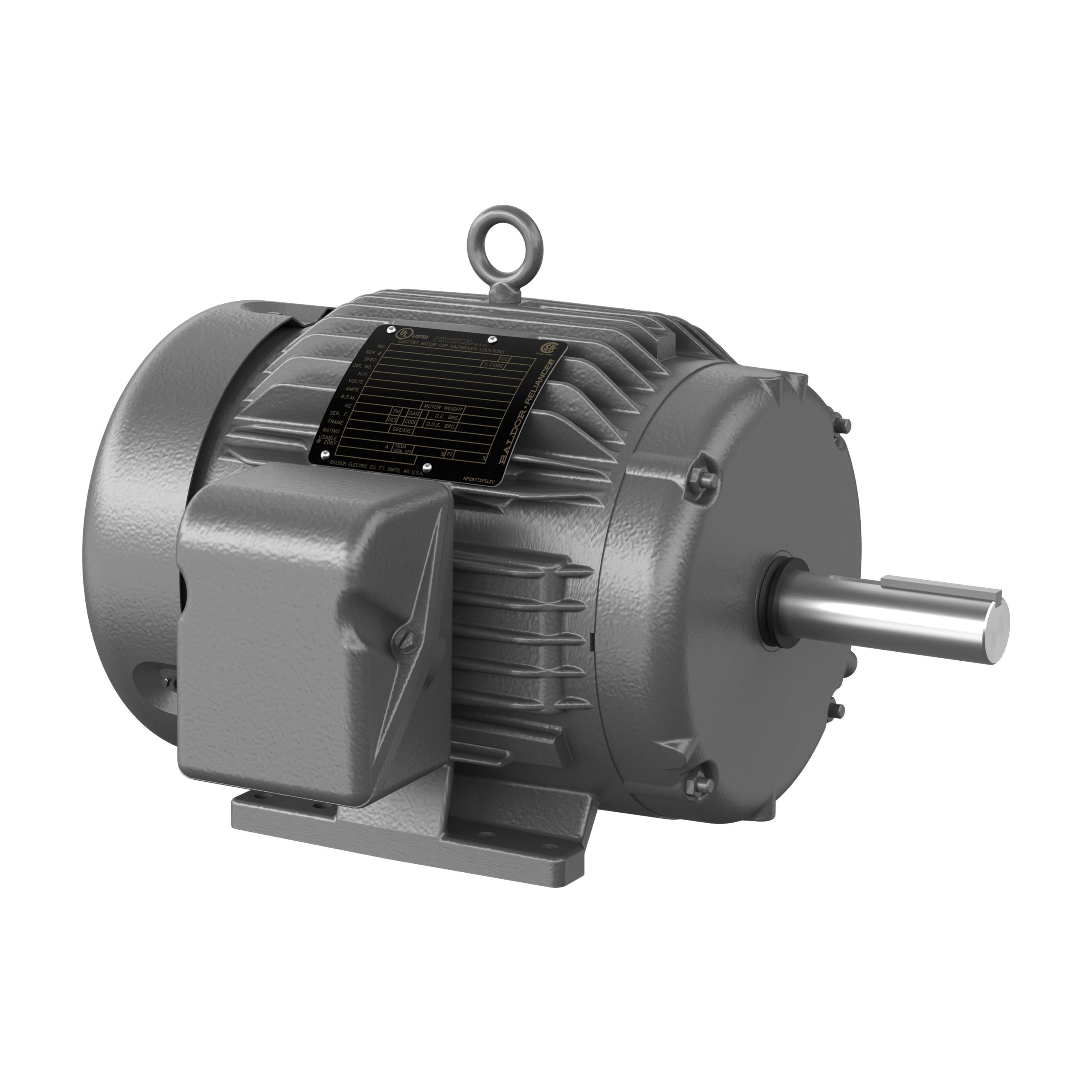

7 1/2 HP, 1800 RPM, Three Phase, 208-230/460V, 60HZ, TEFC, 213TZ, F1
Additional information
| Weight | 170 lbs |
|---|---|
| Brand | Baldor-Reliance® |
| PRODUCT FAMILY | AC Motors |
| PRODUCT LINE | Farm duty, Grain dryer, Centrifugal fan, three phase |
| UPC | 7.82E+11 |
| Specification Number | 07N230X790G1 |
| ENCLOSURE | TEFC |
| FRAME SIZE | 213TZ |
| AGENCY APPROVALS | CSA;CSA EEV;UR |
| Frame Material | Iron |
| Conduit Box Material | Cast Iron |
| POLES | 4 |
| INSULATION CLASS | F |
| SHAFT ROTATION | Reversible |
| BASE | Rigid |
| HORSEPOWER | 7 1/2 HP |
| SERVICE FACTOR | 1.15 |
| DUTY CYCLE | Continuous |
| Synchronous RPM | 1800 |
| SPEED RPM | 1770 |
| Base Speed | |
| Max Speed | |
| IEC OR NEMA STANDARD | NEMA |
| OVERALL LENGTH | 19.45 in |
| VOLTAGE | 230;460 |
| Armature Voltage | |
| Field Voltage | |
| PHASE | Three Phase |
| FREQUENCY | 60 |
| Multispeed Code | Single Speed |
| Armature Current | |
| Field Current | |
| Armature Inertia | |
| Brushes | |
| POWER FACTOR | 81 |
| RATED EFFICIENCY | 91.70% |
| XP_GROUP | |
| XP Temp Code | |
| End Plate (DE) | STANDARD |
| NEMA DESIGN | A |
| BEARING DE | 6307 |
| BEARING ODE | 6206 |
| AMBIENT TEMP | 40 °C |
| Mount Type | F1 |
| Shaft Diameter | 1.3750 in |
| Inverter Duty | Inverter Ready |
| Shaft Grounding | No Shaft Grounding |
| IP Rating | |
| List | 3176 |
| Style | |
| Discount Symbol | FD3 |
| Product URL | |
| INFO PACKET |
