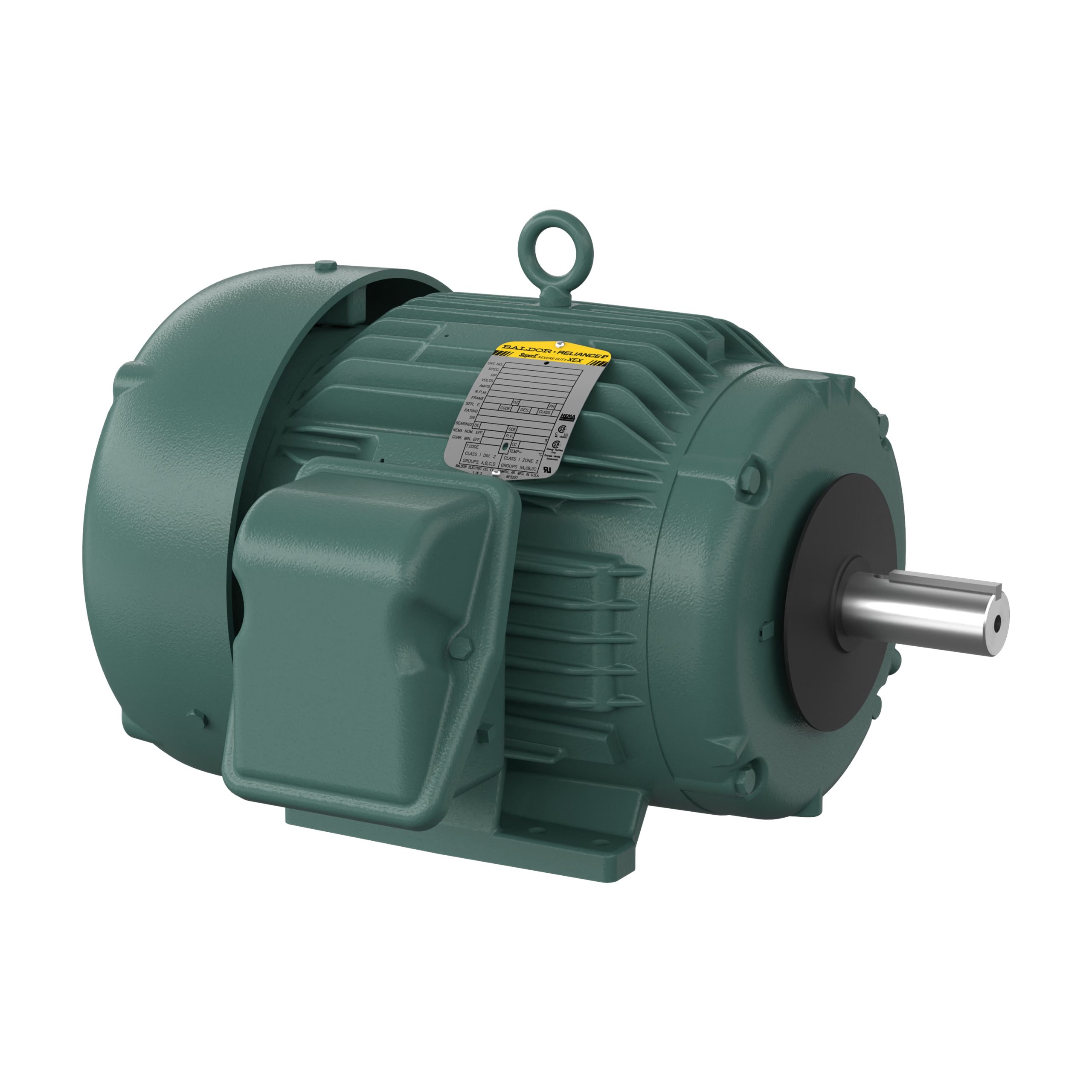

ECTM3764T-G
07D718X970G1
3 HP, 1200 RPM, Three Phase, 230/460V, 60HZ, TEFC, 213T, F1
Description
3 HP, 1200 RPM, Three Phase, 230/460V, 60HZ, TEFC, 213T, F1
Additional information
| Weight | 211 lbs |
|---|---|
| Brand | Baldor-Reliance® |
| PRODUCT FAMILY | AC Motors |
| PRODUCT LINE | Chiller/cooling tower |
| UPC | 7.82E+11 |
| Specification Number | 07D718X970G1 |
| ENCLOSURE | TEFC |
| FRAME SIZE | 213T |
| AGENCY APPROVALS | |
| Frame Material | Iron |
| Conduit Box Material | Cast Iron |
| POLES | 6 |
| INSULATION CLASS | F |
| SHAFT ROTATION | Reversible |
| BASE | Rigid |
| HORSEPOWER | 3 HP |
| SERVICE FACTOR | 1.15 |
| DUTY CYCLE | Continuous |
| Synchronous RPM | 1200 |
| SPEED RPM | 1165 |
| Base Speed | |
| Max Speed | |
| IEC OR NEMA STANDARD | NEMA |
| OVERALL LENGTH | 19.58 in |
| VOLTAGE | |
| Armature Voltage | |
| Field Voltage | |
| PHASE | Three Phase |
| FREQUENCY | 60 |
| Multispeed Code | Single Speed |
| Armature Current | |
| Field Current | |
| Armature Inertia | |
| Brushes | |
| POWER FACTOR | 71 |
| RATED EFFICIENCY | 89.50% |
| XP_GROUP | |
| XP Temp Code | |
| End Plate (DE) | |
| NEMA DESIGN | B |
| BEARING DE | 6307 |
| BEARING ODE | 6206 |
| AMBIENT TEMP | |
| Mount Type | F1 |
| Shaft Diameter | 1.3750 in |
| Inverter Duty | |
| Shaft Grounding | Shaft Grounding |
| IP Rating | |
| List | 4795 |
| Style | |
| Discount Symbol | HV3 |
| Product URL | |
| INFO PACKET |
