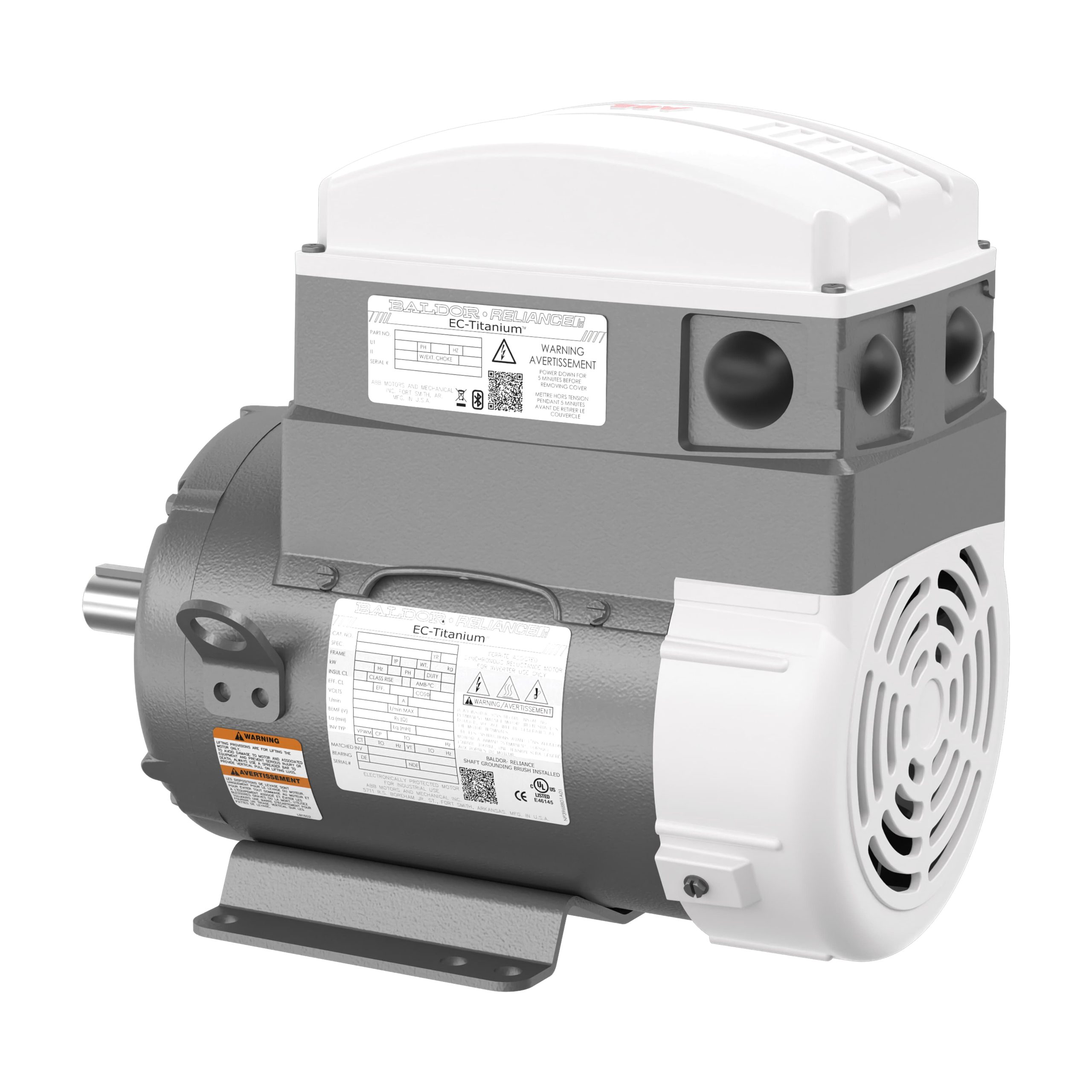

ECS101T3K4EF4
36-0000-3626
4 KW, 1500 RPM, Three Phase, 380V, 50HZ, TEFC, D112, B3
Description
4 KW, 1500 RPM, Three Phase, 380V, 50HZ, TEFC, D112, B3
Additional information
| Weight | 97 lbs |
|---|---|
| Brand | Baldor-Reliance® |
| PRODUCT FAMILY | AC Motors |
| PRODUCT LINE | EC Titanium integrated motor-drive |
| UPC | 7.82E+11 |
| Specification Number | 36-0000-3626 |
| ENCLOSURE | TEFC |
| FRAME SIZE | D112 |
| AGENCY APPROVALS | |
| Frame Material | Steel |
| Conduit Box Material | Steel |
| POLES | 4 |
| INSULATION CLASS | F |
| SHAFT ROTATION | Reversible |
| BASE | Rigid |
| HORSEPOWER | 4 KW |
| SERVICE FACTOR | 1 |
| DUTY CYCLE | Continuous |
| Synchronous RPM | 1500 |
| SPEED RPM | |
| Base Speed | 1500 |
| Max Speed | |
| IEC OR NEMA STANDARD | IEC |
| OVERALL LENGTH | 16.34 in |
| VOLTAGE | 380 |
| Armature Voltage | |
| Field Voltage | |
| PHASE | Three Phase |
| FREQUENCY | 50 |
| Multispeed Code | Single Speed |
| Armature Current | |
| Field Current | |
| Armature Inertia | |
| Brushes | |
| POWER FACTOR | 97 |
| RATED EFFICIENCY | 92.40% |
| XP_GROUP | |
| XP Temp Code | |
| End Plate (DE) | |
| NEMA DESIGN | – |
| BEARING DE | 6206 |
| BEARING ODE | 6205 |
| AMBIENT TEMP | |
| Mount Type | B3 |
| Shaft Diameter | 1.1030 in |
| Inverter Duty | |
| Shaft Grounding | Shaft Grounding |
| IP Rating | |
| List | 4027 |
| Style | |
| Discount Symbol | EC2 |
| Product URL | |
| INFO PACKET | https://www.baldor.com/api/products/ECS101T3K4EF4/infopacket |
