ECS101M0H2DF4
35E5203Z707G1

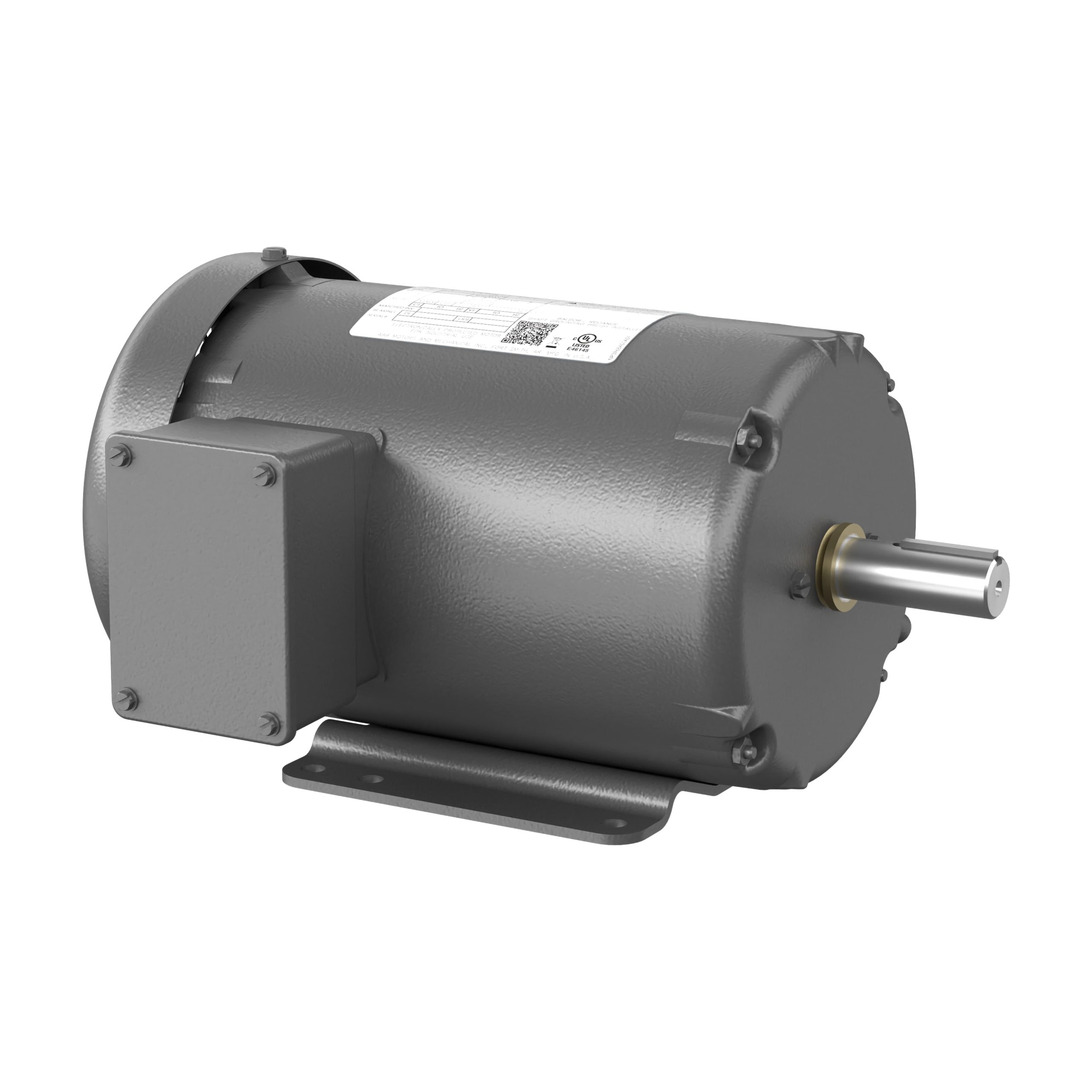

2 HP, 1800 RPM, Three Phase, 230/460V, 60HZ, TEFC, 145T, F1
Description
2 HP, 1800 RPM, Three Phase, 230/460V, 60HZ, TEFC, 145T, F1
Additional information
| Weight | 35 lbs |
|---|---|
| Brand | Baldor-Reliance® |
| PRODUCT FAMILY | AC Motors |
| PRODUCT LINE | EC Titanium motor |
| UPC | 7.82E+11 |
| Specification Number | 35E5203Z707G1 |
| ENCLOSURE | TEFC |
| FRAME SIZE | 145T |
| AGENCY APPROVALS | CULUS;WEEE |
| Frame Material | Steel |
| Conduit Box Material | Steel |
| POLES | 4 |
| INSULATION CLASS | |
| SHAFT ROTATION | Reversible |
| BASE | Rigid |
| HORSEPOWER | 2 HP |
| SERVICE FACTOR | |
| DUTY CYCLE | |
| Synchronous RPM | 1800 |
| SPEED RPM | 1800 |
| Base Speed | 1800 |
| Max Speed | |
| IEC OR NEMA STANDARD | NEMA |
| OVERALL LENGTH | 12.29 in |
| VOLTAGE | 230;460 |
| Armature Voltage | |
| Field Voltage | |
| PHASE | Three Phase |
| FREQUENCY | 60 |
| Multispeed Code | Single Speed |
| Armature Current | |
| Field Current | |
| Armature Inertia | |
| Brushes | |
| POWER FACTOR | |
| RATED EFFICIENCY | 90.70% |
| XP_GROUP | |
| XP Temp Code | |
| End Plate (DE) | STANDARD |
| NEMA DESIGN | B |
| BEARING DE | 6205 |
| BEARING ODE | 6203 |
| AMBIENT TEMP | |
| Mount Type | F1 |
| Shaft Diameter | 0.8750 in |
| Inverter Duty | Inverter Duty |
| Shaft Grounding | Shaft Grounding |
| IP Rating | NONE |
| List | 1684 |
| Style | |
| Discount Symbol | EC1 |
| Product URL | |
| INFO PACKET | https://www.baldor.com/api/products/ECS101M0H2DF4/infopacket |
