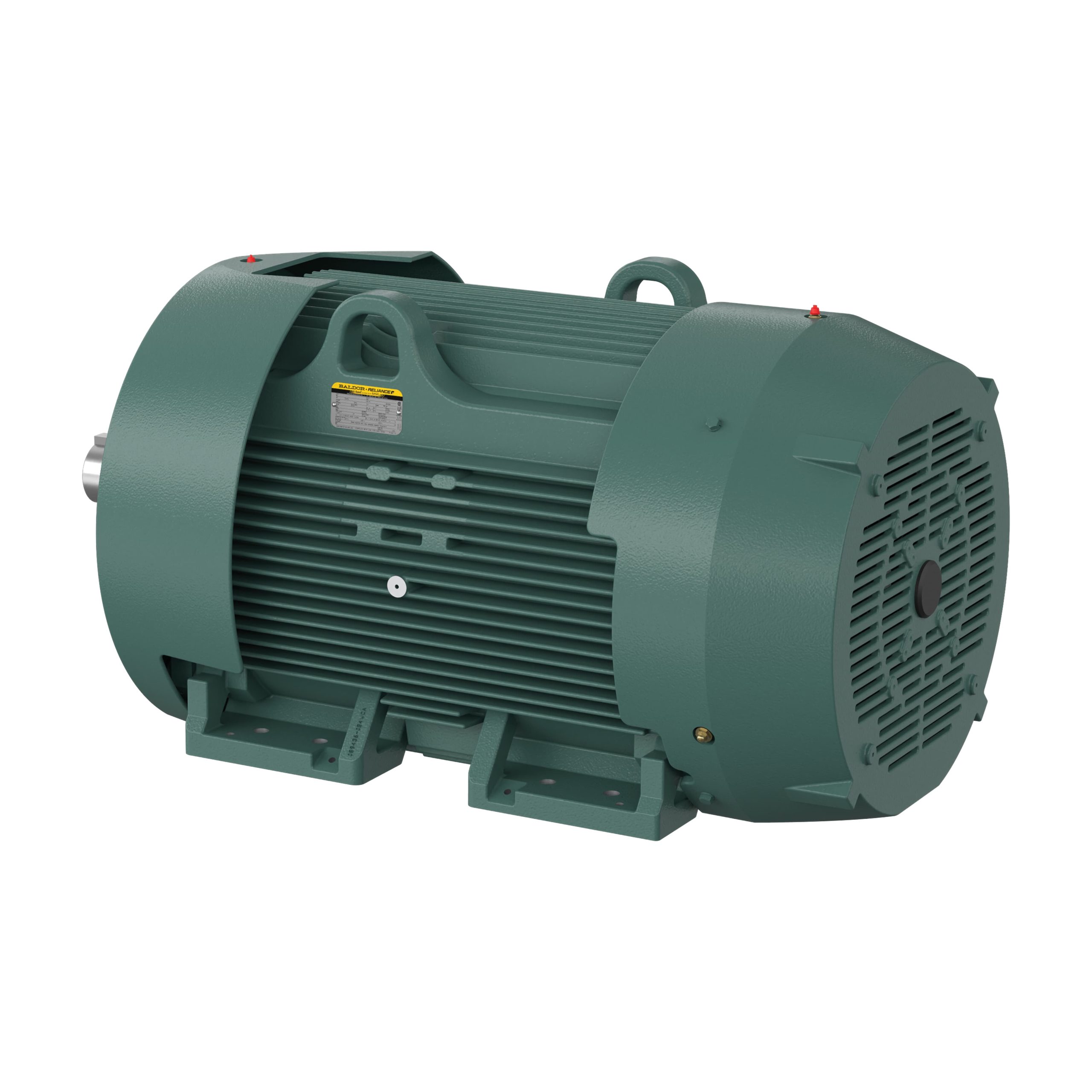

ECP84407TR-5
A44-0058-0891
200 HP, 1800 RPM, Three Phase, 575V, 60HZ, TEFC, 447T, F1
Description
200 HP, 1800 RPM, Three Phase, 575V, 60HZ, TEFC, 447T, F1
Additional information
| Weight | 2618 lbs |
|---|---|
| Brand | Baldor-Reliance® |
| PRODUCT FAMILY | AC Motors |
| PRODUCT LINE | IEEE 841 XL |
| UPC | 7.82E+11 |
| Specification Number | A44-0058-0891 |
| ENCLOSURE | TEFC |
| FRAME SIZE | 447T |
| AGENCY APPROVALS | CCSA US;UR |
| Frame Material | Iron |
| Conduit Box Material | |
| POLES | 4 |
| INSULATION CLASS | F |
| SHAFT ROTATION | Phase Seq-Std Rot (CCWODE) |
| BASE | Rigid |
| HORSEPOWER | 200 HP |
| SERVICE FACTOR | 1.15 |
| DUTY CYCLE | Continuous |
| Synchronous RPM | 1800 |
| SPEED RPM | 1785 |
| Base Speed | |
| Max Speed | |
| IEC OR NEMA STANDARD | Other |
| OVERALL LENGTH | 48.46 in |
| VOLTAGE | 460 |
| Armature Voltage | |
| Field Voltage | |
| PHASE | Three Phase |
| FREQUENCY | 60 |
| Multispeed Code | Single Speed |
| Armature Current | |
| Field Current | |
| Armature Inertia | |
| Brushes | |
| POWER FACTOR | 88 |
| RATED EFFICIENCY | 96.20% |
| XP_GROUP | |
| XP Temp Code | T3 |
| End Plate (DE) | C-FACE |
| NEMA DESIGN | B |
| BEARING DE | NU222 |
| BEARING ODE | 6318 |
| AMBIENT TEMP | 40 °C |
| Mount Type | F1 |
| Shaft Diameter | 3.3750 in |
| Inverter Duty | Inverter Ready |
| Shaft Grounding | No Shaft Grounding |
| IP Rating | IP56 |
| List | 42626 |
| Style | |
| Discount Symbol | SD8 |
| Product URL | |
| INFO PACKET |
