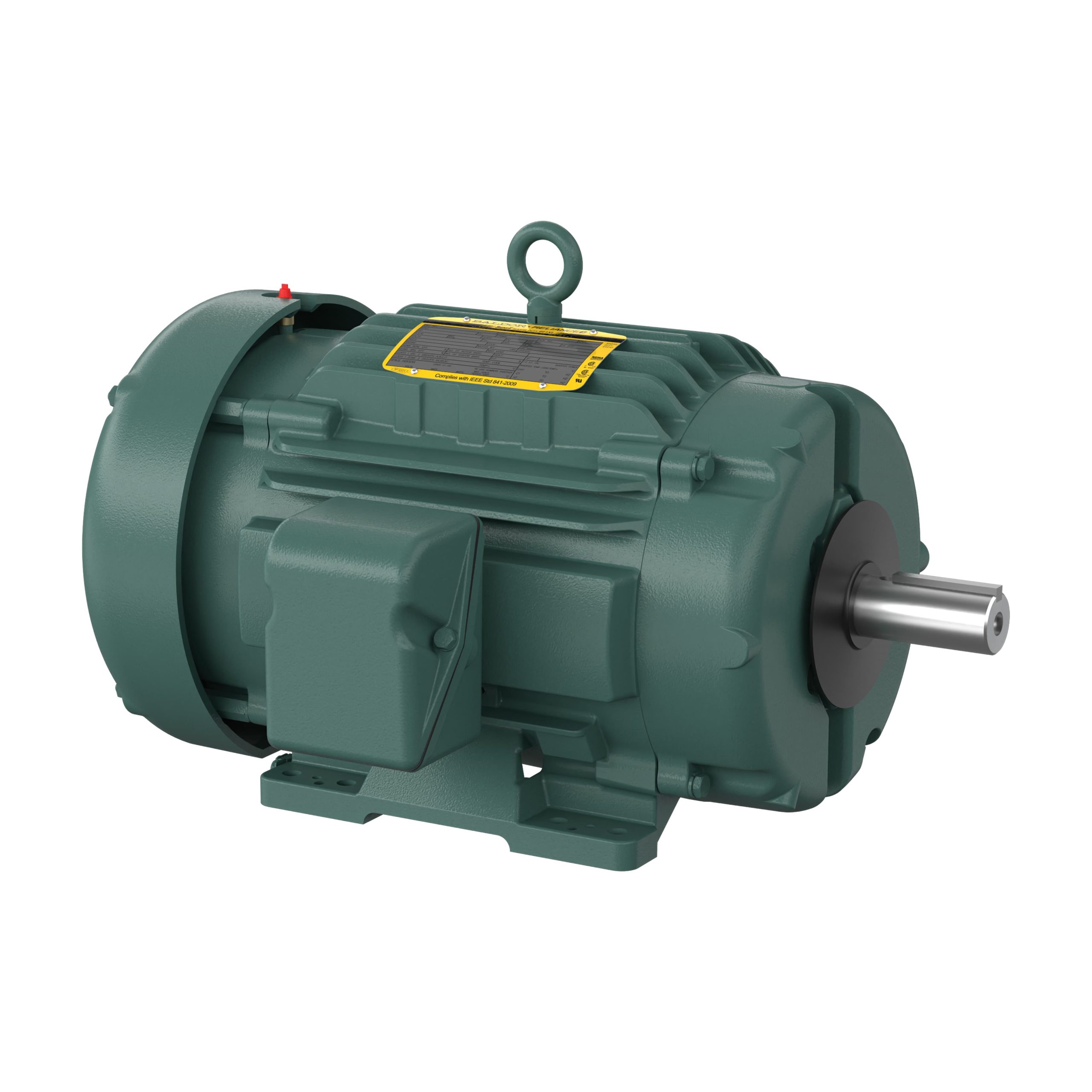

ECP62334TR-4
09K884T417
20 HP, 1800 RPM, Three Phase, 460V, 60HZ, TEFC, 256T, F1
Description
20 HP, 1800 RPM, Three Phase, 460V, 60HZ, TEFC, 256T, F1
Additional information
| Weight | 355 lbs |
|---|---|
| Brand | Baldor-Reliance® |
| PRODUCT FAMILY | AC Motors |
| PRODUCT LINE | 661XL / IEEE 841 |
| UPC | 7.82E+11 |
| Specification Number | 09K884T417 |
| ENCLOSURE | TEFC |
| FRAME SIZE | 256T |
| AGENCY APPROVALS | CCSA US;CSA EEV;NEMA_PREMIUM;UR |
| Frame Material | Iron |
| Conduit Box Material | Cast Iron |
| POLES | 4 |
| INSULATION CLASS | F |
| SHAFT ROTATION | Reversible |
| BASE | Rigid |
| HORSEPOWER | 20 HP |
| SERVICE FACTOR | 1.15 |
| DUTY CYCLE | Continuous |
| Synchronous RPM | 1800 |
| SPEED RPM | 1760 |
| Base Speed | |
| Max Speed | 2700 |
| IEC OR NEMA STANDARD | NEMA |
| OVERALL LENGTH | 24.86 in |
| VOLTAGE | 460 |
| Armature Voltage | |
| Field Voltage | |
| PHASE | Three Phase |
| FREQUENCY | 60 |
| Multispeed Code | Single Speed |
| Armature Current | |
| Field Current | |
| Armature Inertia | |
| Brushes | |
| POWER FACTOR | 87 |
| RATED EFFICIENCY | 93% |
| XP_GROUP | |
| XP Temp Code | T3C |
| End Plate (DE) | STANDARD |
| NEMA DESIGN | B |
| BEARING DE | NU309 |
| BEARING ODE | 6309 |
| AMBIENT TEMP | 40 °C |
| Mount Type | F1 |
| Shaft Diameter | 1.6250 in |
| Inverter Duty | Inverter Duty |
| Shaft Grounding | No Shaft Grounding |
| IP Rating | |
| List | 5685 |
| Style | |
| Discount Symbol | SD6 |
| Product URL | |
| INFO PACKET |
