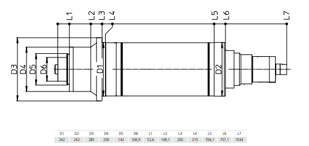

DMS 112-638.375
Description
Milling spindles from Kessler matching customer requirements. Minimized short non productive times, reduced moved mass, high power density, a compact design and low maintenance intervals are outstanding features of Kessler products. Kessler milling spindles are equipped with Kessler motors that can be driven with all common CNC controllers. Kessler provides the parameter sets for our customers-for maximum safety and convenience in the operation of our products.
Additional information
| Weight | 211 lbs |
|---|---|
| Manufacturer | Kessler |
| Model # | DMS 112-638.375 |
| Torque S1 | 160 |
| Torque S6 | 280 |
| Power S1 | 25 |
| Power S6 | 44 |
| RPM | 12000 |
| Motor Type | asynchronous |
| Tool Interface | HSK-A100 |
| Release Unit | hydraulic |
| Cooling | liquid cooled |
| Bearing Lubrication | lubricated with oil-air |
| Control | Siemens/Fanuc/Heidenhain |
| Temperature Sensor | NO |
| Vibration Sensor | NO |
| Cooling Jacket | NO |
| Leakage Monitoring | YES |
| Temperature Compensation | NO |
| Retaining Clamping Set | YES |
| Minimum Quantity Lubrication | NO |
| Control of Surface Contact | NO |
| Rotary Union | YES |
| Clamp | NO |
