Description

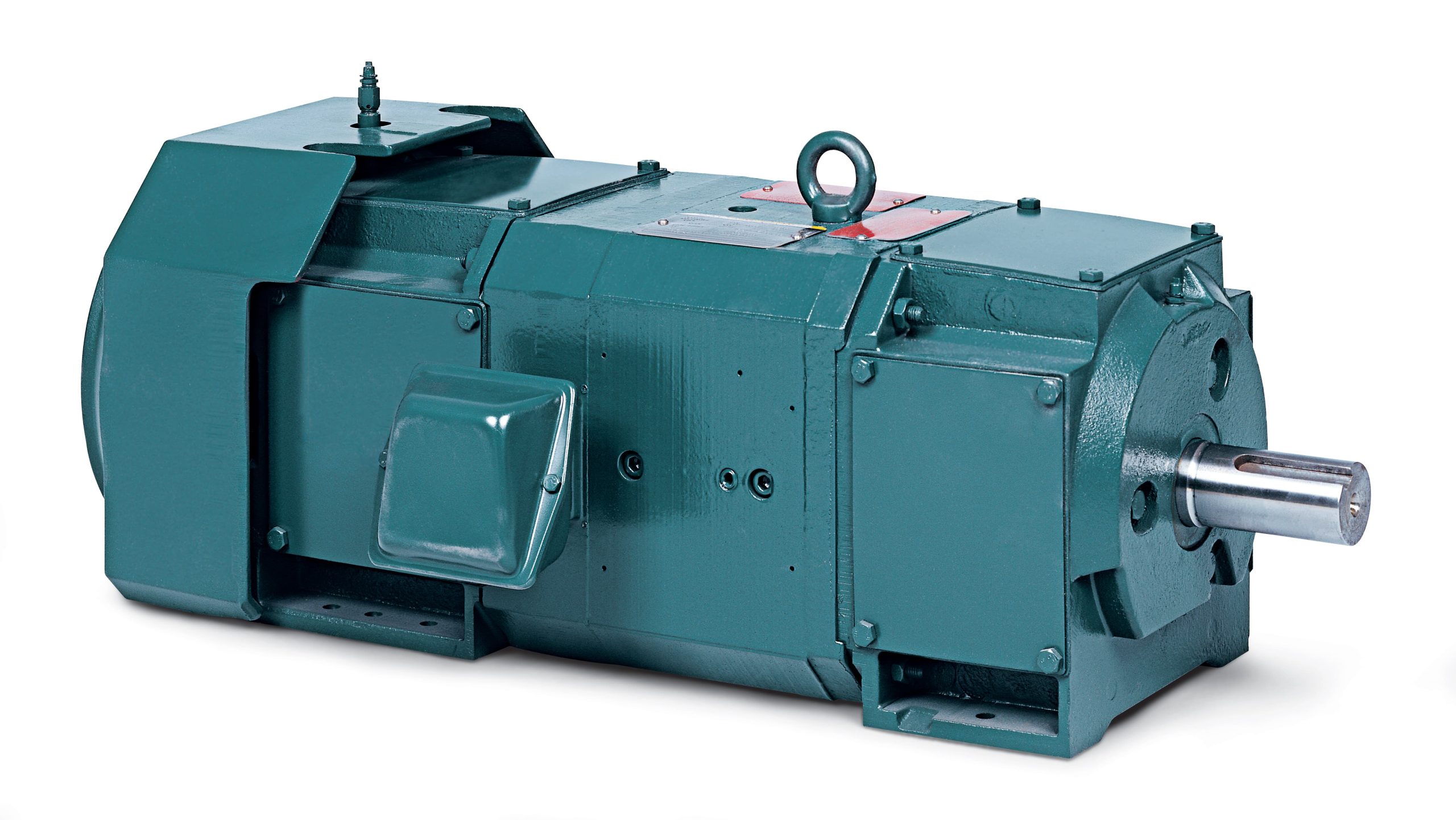

20 HP, 1750 RPM, 500 V ARM, 300 V FIELD, TEFC, LC2512ATZ, F1
Additional information
| Weight | 640 lbs |
|---|---|
| Brand | Baldor-Reliance® |
| PRODUCT FAMILY | DC Motors |
| PRODUCT LINE | RPM III, DC motor |
| UPC | 7.82E+11 |
| Specification Number | T25S0304 |
| ENCLOSURE | TEFC |
| FRAME SIZE | LC2512ATZ |
| AGENCY APPROVALS | CCSA US |
| Frame Material | Exposed Laminations |
| Conduit Box Material | |
| POLES | |
| INSULATION CLASS | F |
| SHAFT ROTATION | |
| BASE | Rigid |
| HORSEPOWER | 20 HP |
| SERVICE FACTOR | 1 |
| DUTY CYCLE | Continuous |
| Synchronous RPM | |
| SPEED RPM | |
| Base Speed | 1750 |
| Max Speed | 2300 |
| IEC OR NEMA STANDARD | NEMA |
| OVERALL LENGTH | 38.94 in |
| VOLTAGE | |
| Armature Voltage | 500 |
| Field Voltage | 300 |
| PHASE | |
| FREQUENCY | |
| Multispeed Code | |
| Armature Current | 33 |
| Field Current | |
| Armature Inertia | |
| Brushes | 2/419904-51AB |
| POWER FACTOR | |
| RATED EFFICIENCY | |
| XP_GROUP | |
| XP Temp Code | |
| End Plate (DE) | |
| NEMA DESIGN | – |
| BEARING DE | 60BC03J30X |
| BEARING ODE | 50BC02J30X |
| AMBIENT TEMP | 40 °C |
| Mount Type | F1 |
| Shaft Diameter | |
| Inverter Duty | |
| Shaft Grounding | No Shaft Grounding |
| IP Rating | |
| List | 33206 |
| Style | |
| Discount Symbol | R3B |
| Product URL | |
| INFO PACKET |
