Description

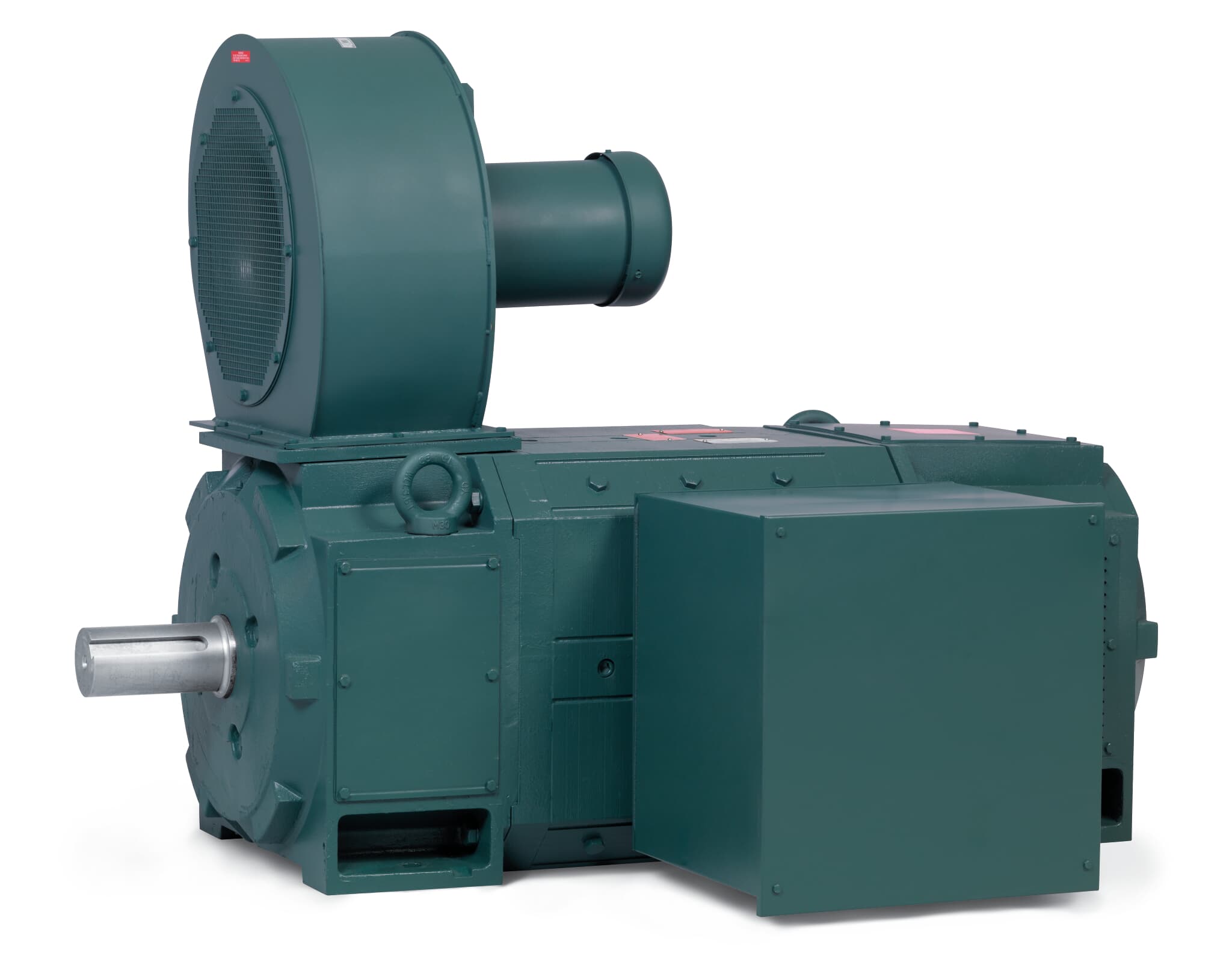

500 HP, 1750 RPM, 500 V ARM, 300 V FIELD, DP, C4412ATZ, F2
Additional information
| Weight | 3445 lbs |
|---|---|
| Brand | Baldor-Reliance® |
| PRODUCT FAMILY | DC Motors |
| PRODUCT LINE | RPM III, DC motor |
| UPC | 7.82E+11 |
| Specification Number | T44T1305 |
| ENCLOSURE | DP |
| FRAME SIZE | C4412ATZ |
| AGENCY APPROVALS | CCSA US |
| Frame Material | Steel |
| Conduit Box Material | |
| POLES | |
| INSULATION CLASS | F |
| SHAFT ROTATION | |
| BASE | Rigid |
| HORSEPOWER | 500 HP |
| SERVICE FACTOR | 1 |
| DUTY CYCLE | Continuous |
| Synchronous RPM | |
| SPEED RPM | |
| Base Speed | 1750 |
| Max Speed | 2050 |
| IEC OR NEMA STANDARD | NEMA |
| OVERALL LENGTH | 58.32 in |
| VOLTAGE | |
| Armature Voltage | 500 |
| Field Voltage | 300 |
| PHASE | |
| FREQUENCY | |
| Multispeed Code | |
| Armature Current | 797 |
| Field Current | |
| Armature Inertia | |
| Brushes | 2/419904-52BK |
| POWER FACTOR | |
| RATED EFFICIENCY | |
| XP_GROUP | |
| XP Temp Code | |
| End Plate (DE) | |
| NEMA DESIGN | – |
| BEARING DE | 110BC02J30X |
| BEARING ODE | 95BC02J30X |
| AMBIENT TEMP | 40 °C |
| Mount Type | F2 |
| Shaft Diameter | |
| Inverter Duty | |
| Shaft Grounding | No Shaft Grounding |
| IP Rating | |
| List | 148727 |
| Style | |
| Discount Symbol | R3B |
| Product URL | |
| INFO PACKET |
