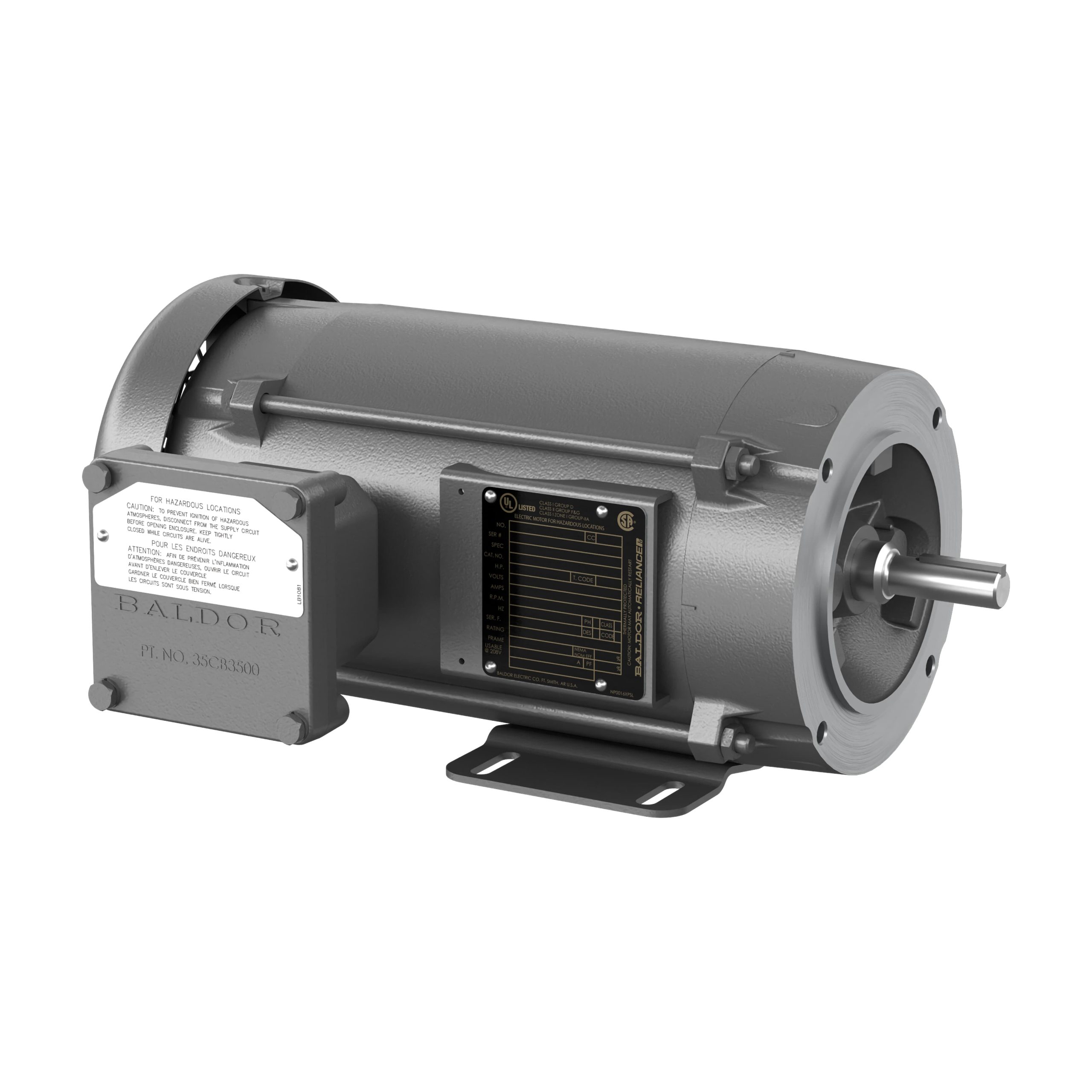

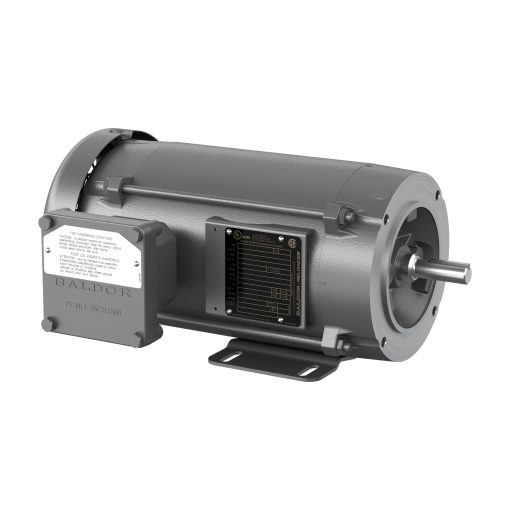

CXL05142A
35-0000-1077
1 HP, 1800 RPM, Single Phase, 115/230V, 60HZ, XPFC, 56C, F1
Description
1 HP, 1800 RPM, Single Phase, 115/230V, 60HZ, XPFC, 56C, F1
Additional information
| Weight | 48 lbs |
|---|---|
| Brand | Baldor-Reliance® |
| PRODUCT FAMILY | AC Motors |
| PRODUCT LINE | Explosion Proof, General purpose, single phase |
| UPC | 7.82E+11 |
| Specification Number | 35-0000-1077 |
| ENCLOSURE | XPFC |
| FRAME SIZE | 56C |
| AGENCY APPROVALS | CSA;UL |
| Frame Material | Steel |
| Conduit Box Material | Steel |
| POLES | 4 |
| INSULATION CLASS | B |
| SHAFT ROTATION | Reversible |
| BASE | Rigid |
| HORSEPOWER | 1 HP |
| SERVICE FACTOR | 1 |
| DUTY CYCLE | Continuous |
| Synchronous RPM | 1800 |
| SPEED RPM | 1725 35WG0527 |
| Base Speed | |
| Max Speed | |
| IEC OR NEMA STANDARD | NEMA |
| OVERALL LENGTH | 15.17 in |
| VOLTAGE | 110;220 |
| Armature Voltage | |
| Field Voltage | |
| PHASE | Single Phase |
| FREQUENCY | 60 |
| Multispeed Code | Single Speed |
| Armature Current | |
| Field Current | |
| Armature Inertia | |
| Brushes | |
| POWER FACTOR | 68 |
| RATED EFFICIENCY | 67% |
| XP_GROUP | Class I, Group D, Class II, Group F & G |
| XP Temp Code | T2C |
| End Plate (DE) | C-FACE |
| NEMA DESIGN | L |
| BEARING DE | |
| BEARING ODE | |
| AMBIENT TEMP | 40 °C |
| Mount Type | F1 |
| Shaft Diameter | 0.6250 in |
| Inverter Duty | Not Inverter |
| Shaft Grounding | No Shaft Grounding |
| IP Rating | NONE |
| List | 1727 |
| Style | |
| Discount Symbol | XP1 |
| Product URL | |
| INFO PACKET |
