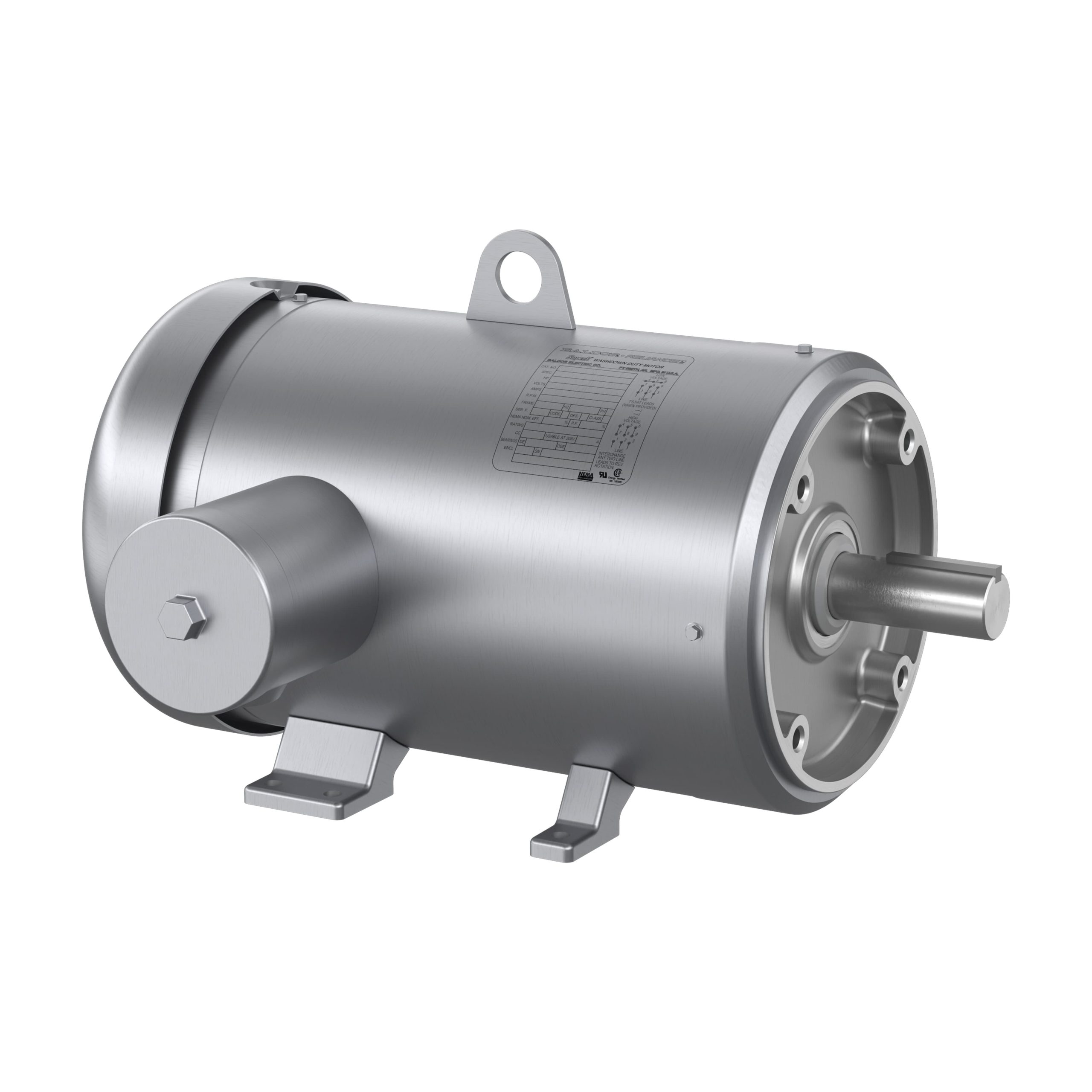

CFSWDM3708T-E
37Q242Z663G1
5 HP, 1200 RPM, Three Phase, 230/460V, 60HZ, TEFC, 213TC, F1
Description
5 HP, 1200 RPM, Three Phase, 230/460V, 60HZ, TEFC, 213TC, F1
Additional information
| Weight | 179 lbs |
|---|---|
| Brand | Baldor-Reliance® |
| PRODUCT FAMILY | AC Motors |
| PRODUCT LINE | Food Safe stainless steel, encapsulated, three phase |
| UPC | 7.82E+11 |
| Specification Number | 37Q242Z663G1 |
| ENCLOSURE | TEFC |
| FRAME SIZE | 213TC |
| AGENCY APPROVALS | CSA EEV;NEMA_PREMIUM;UR |
| Frame Material | Stainless Steel |
| Conduit Box Material | Steel |
| POLES | 6 |
| INSULATION CLASS | H |
| SHAFT ROTATION | Reversible |
| BASE | Rigid |
| HORSEPOWER | 5 HP |
| SERVICE FACTOR | 1.15 |
| DUTY CYCLE | Continuous |
| Synchronous RPM | 1200 |
| SPEED RPM | 1165 |
| Base Speed | |
| Max Speed | |
| IEC OR NEMA STANDARD | NEMA |
| OVERALL LENGTH | 22.12 in |
| VOLTAGE | 230;460 |
| Armature Voltage | |
| Field Voltage | |
| PHASE | Three Phase |
| FREQUENCY | 60 |
| Multispeed Code | Single Speed |
| Armature Current | |
| Field Current | |
| Armature Inertia | |
| Brushes | |
| POWER FACTOR | 71 |
| RATED EFFICIENCY | 89.50% |
| XP_GROUP | |
| XP Temp Code | |
| End Plate (DE) | C-FACE |
| NEMA DESIGN | A |
| BEARING DE | 6307 |
| BEARING ODE | 6307 |
| AMBIENT TEMP | 40 °C |
| Mount Type | F1 |
| Shaft Diameter | 1.3750 in |
| Inverter Duty | Inverter Ready |
| Shaft Grounding | No Shaft Grounding |
| IP Rating | |
| List | 6695 |
| Style | |
| Discount Symbol | WDF |
| Product URL | |
| INFO PACKET | https://www.baldor.com/api/products/CFSWDM3708T-E/infopacket |
