Description

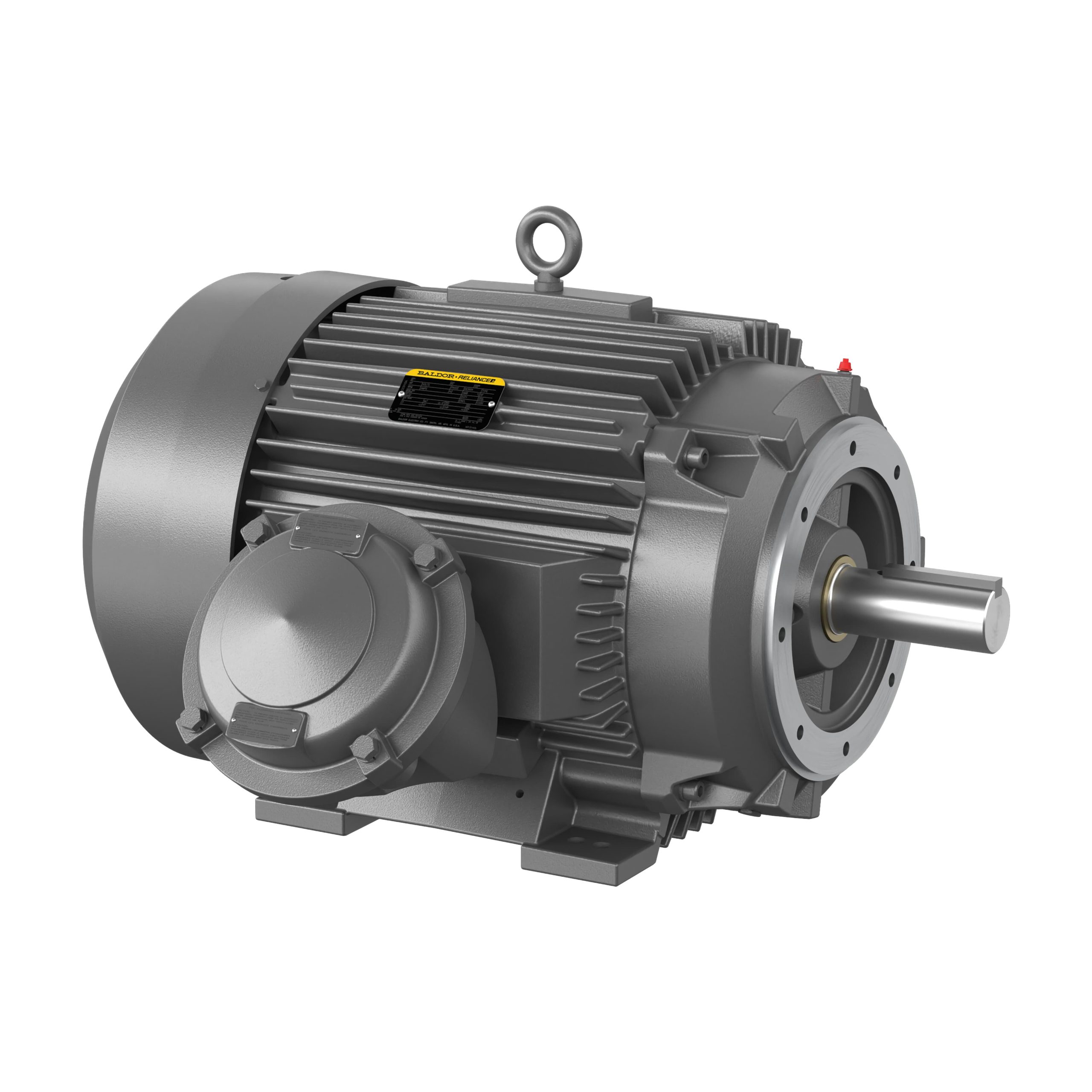

40 HP, 1200 RPM, Three Phase, 230/460V, 60HZ, TEFC, 364TC, F1
Additional information
| Weight | 908 lbs |
|---|---|
| Brand | Baldor-Reliance® |
| PRODUCT FAMILY | AC Motors |
| PRODUCT LINE | Explosion Proof, Drill Rig duty, three phase |
| UPC | 7.82E+11 |
| Specification Number | A36-7818-1194 |
| ENCLOSURE | TEFC |
| FRAME SIZE | 364TC |
| AGENCY APPROVALS | CCSAUSEEV;CSA;UL |
| Frame Material | Iron |
| Conduit Box Material | |
| POLES | 6 |
| INSULATION CLASS | F |
| SHAFT ROTATION | Reversible |
| BASE | Rigid |
| HORSEPOWER | 40 HP |
| SERVICE FACTOR | 1 |
| DUTY CYCLE | Continuous |
| Synchronous RPM | 1200 |
| SPEED RPM | 1190 |
| Base Speed | |
| Max Speed | 3000 |
| IEC OR NEMA STANDARD | NEMA |
| OVERALL LENGTH | 33.45 in |
| VOLTAGE | 575 |
| Armature Voltage | |
| Field Voltage | |
| PHASE | Three Phase |
| FREQUENCY | 60 |
| Multispeed Code | Single Speed |
| Armature Current | |
| Field Current | |
| Armature Inertia | |
| Brushes | |
| POWER FACTOR | 80 |
| RATED EFFICIENCY | 94.10% |
| XP_GROUP | Class I, Group C & D |
| XP Temp Code | T3C |
| End Plate (DE) | C-FACE |
| NEMA DESIGN | B |
| BEARING DE | 65BC03J30X |
| BEARING ODE | 65BC03J30X |
| AMBIENT TEMP | 40 °C |
| Mount Type | F1 |
| Shaft Diameter | 2.3740 in |
| Inverter Duty | Inverter Ready |
| Shaft Grounding | No Shaft Grounding |
| IP Rating | NONE |
| List | 21114 |
| Style | |
| Discount Symbol | XDM |
| Product URL | |
| INFO PACKET |
