Description

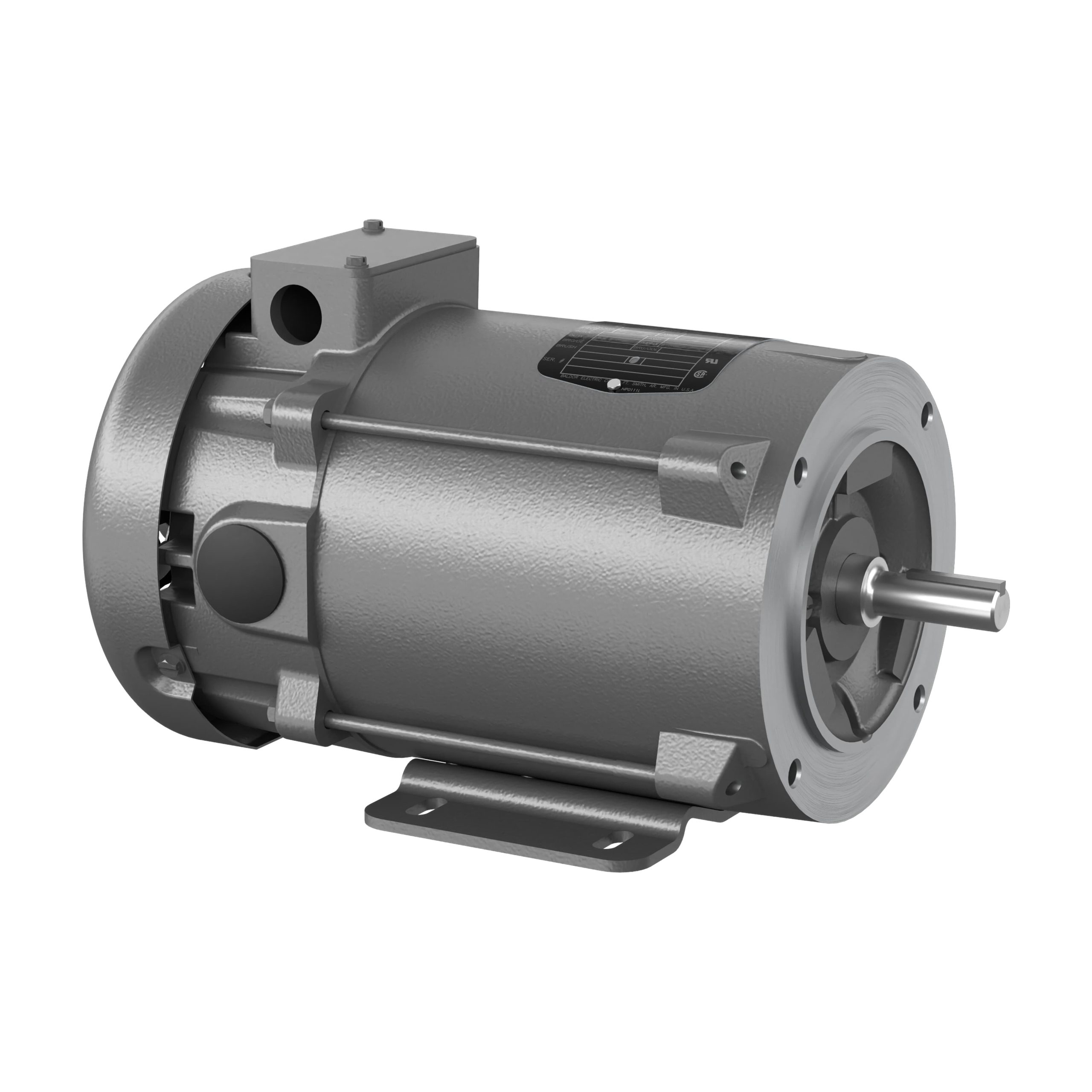

1 HP, 1750 RPM, 90 V ARM, 100/50 V FIELD, TEFC, 56C, F1
Additional information
| Weight | 53 lbs |
|---|---|
| Brand | Baldor-Reliance® |
| PRODUCT FAMILY | DC Motors |
| PRODUCT LINE | DC Shunt Wound SCR Drive |
| UPC | 7.82E+11 |
| Specification Number | 35P442Z390 |
| ENCLOSURE | TEFC |
| FRAME SIZE | 56C |
| AGENCY APPROVALS | CSA;UR |
| Frame Material | Steel |
| Conduit Box Material | Steel |
| POLES | |
| INSULATION CLASS | F |
| SHAFT ROTATION | Reversible |
| BASE | Rigid |
| HORSEPOWER | 1 HP |
| SERVICE FACTOR | 1 |
| DUTY CYCLE | Continuous |
| Synchronous RPM | |
| SPEED RPM | |
| Base Speed | 1750 |
| Max Speed | |
| IEC OR NEMA STANDARD | NEMA |
| OVERALL LENGTH | 16.2 in |
| VOLTAGE | |
| Armature Voltage | 90 |
| Field Voltage | 100/50 |
| PHASE | |
| FREQUENCY | |
| Multispeed Code | |
| Armature Current | 10 |
| Field Current | |
| Armature Inertia | 13.657 |
| Brushes | 2/BP5000T07 |
| POWER FACTOR | |
| RATED EFFICIENCY | |
| XP_GROUP | |
| XP Temp Code | |
| End Plate (DE) | |
| NEMA DESIGN | – |
| BEARING DE | 6205 |
| BEARING ODE | 6203 |
| AMBIENT TEMP | 40 °C |
| Mount Type | F1 |
| Shaft Diameter | |
| Inverter Duty | |
| Shaft Grounding | No Shaft Grounding |
| IP Rating | |
| List | 2587 |
| Style | |
| Discount Symbol | WFS |
| Product URL | |
| INFO PACKET |
