Description

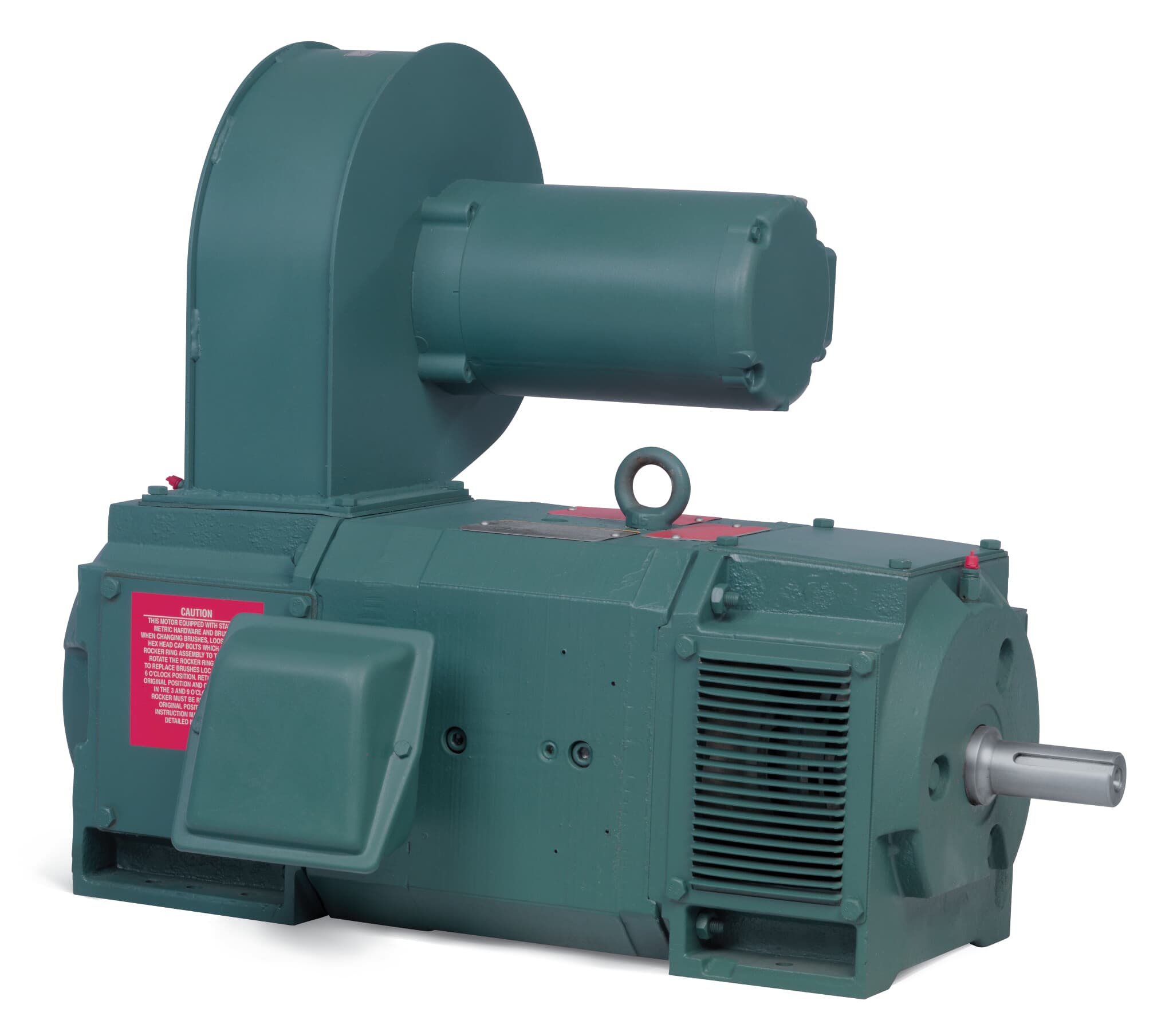

15 HP, 1750 RPM, 240 V ARM, 150 V FIELD, DP, SC2113ATCZ, F1
Additional information
| Weight | 350 lbs |
|---|---|
| Brand | Baldor-Reliance® |
| PRODUCT FAMILY | DC Motors |
| PRODUCT LINE | RPM III, DC motor |
| UPC | 7.82E+11 |
| Specification Number | T21T1384 |
| ENCLOSURE | DP |
| FRAME SIZE | SC2113ATCZ |
| AGENCY APPROVALS | CCSA US |
| Frame Material | Steel |
| Conduit Box Material | |
| POLES | |
| INSULATION CLASS | F |
| SHAFT ROTATION | |
| BASE | Rigid |
| HORSEPOWER | 15 HP |
| SERVICE FACTOR | 1 |
| DUTY CYCLE | Continuous |
| Synchronous RPM | |
| SPEED RPM | |
| Base Speed | 1750 |
| Max Speed | 2300 |
| IEC OR NEMA STANDARD | NEMA |
| OVERALL LENGTH | 28 in |
| VOLTAGE | |
| Armature Voltage | 240 |
| Field Voltage | 150 |
| PHASE | |
| FREQUENCY | |
| Multispeed Code | |
| Armature Current | 56 |
| Field Current | |
| Armature Inertia | |
| Brushes | 2/419904-51AD |
| POWER FACTOR | |
| RATED EFFICIENCY | |
| XP_GROUP | |
| XP Temp Code | |
| End Plate (DE) | |
| NEMA DESIGN | – |
| BEARING DE | 50BC03J30X |
| BEARING ODE | 45BC02J30X |
| AMBIENT TEMP | 40 °C |
| Mount Type | F1 |
| Shaft Diameter | |
| Inverter Duty | |
| Shaft Grounding | No Shaft Grounding |
| IP Rating | |
| List | 26149 |
| Style | |
| Discount Symbol | R3B |
| Product URL | |
| INFO PACKET |
